A73 Datasheet - Tyco Electronics

A73 5 TO 500 MHz CASCADABLE AMPLIFIER

A73/SMA73 5 TO 500 MHz CASCADABLE AMPLIFIER HIGH GAIN-TWO STAGES: 32 dB (TYP.) LOW NOISE: 3.5 dB (TYP.) +15 dBm THIRD ORDER I.P. (TYP.) LOW VSWR: <1.4:1 (TYP.) Typical Performance @ 25°C Specifications (Rev. Date: 11/00) Characteristics Frequency Small Signal Gain (min.) Gain Flatness (max.) Reverse Isolation Noise Figure (max.) Power Output @ 1 dB comp. (min.) IP3 IP2 Second Order Harmonic IP VSWR Input / Output (max.) DC Current @ 15 Volts (max.) Typical 1-600 .

A73-TycoElectronics.pdf

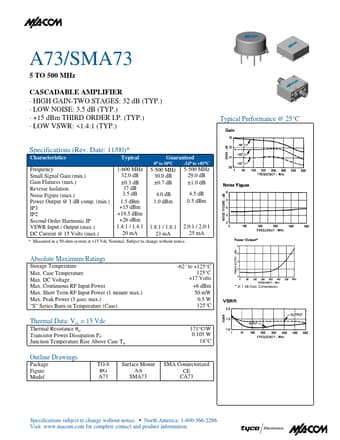

Preview of A73 PDF

Datasheet Details

Part number:

A73

Manufacturer:

Tyco Electronics

File Size:

98.98 KB

Description:

5 to 500 mhz cascadable amplifier.
