A89 100 TO 800 MHz CASCADABLE AMPLIFIER

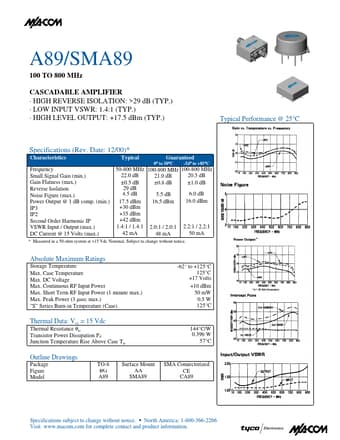

A89/SMA89 100 TO 800 MHz CASCADABLE AMPLIFIER HIGH REVERSE ISOLATION: >29 dB (TYP.) LOW INPUT VSWR: 1.4:1 (TYP.) HIGH LEVEL OUTPUT: +17.5 dBm (TYP.) Typical Performance @ 25°C Specifications (Rev. Date: 12/00) Characteristics Frequency Small Signal Gain (min.) Gain Flatness (max.) Reverse Isolation Noise Figure (max.) Power Output @ 1 dB comp. (min.) IP3 IP2 Second Order Harmonic IP VSWR Input / Output (max.) DC Current @ 15 Volts (max.) Typical 0° to 50°C Guaranteed -5.

A89_TycoElectronics.pdf

A89 Datasheet Preview — Preview of A89 PDF

Datasheet Details

Part number:

A89

Manufacturer:

Tyco Electronics

File Size:

113.50 KB

Description:

100 to 800 mhz cascadable amplifier.
