AM05-0005

High Intercept Amplifier/ 15 - 100 MHz

Tyco Electronics

Image	Manufacturer	Part Number	B2B mpn	Description	Distributor	Stock	Quantity	Price	Buy Now
	MACOM	AM05-0005	AM05-0005	AMPLIFIER,SMT,HYBRID,	DigiKey	0	10 units	$175.75	🛒 Buy Now

📥 Download PDF (241.69 KB)

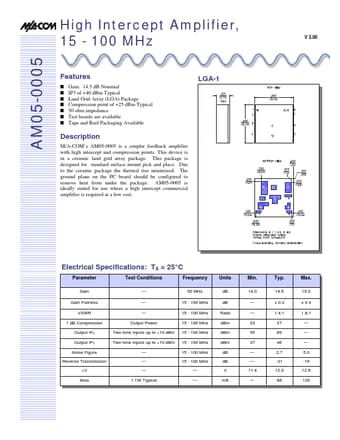

AM05-0005 Datasheet Preview Page 1 — Preview of AM05-0005 Datasheet

Datasheet Details

Part number:

AM05-0005

Manufacturer:

Tyco Electronics

File Size:

241.69 KB

Download:

📄 Download AM05-0005 Datasheet PDF

Description:

High intercept amplifier/ 15 - 100 mhz.
High Intercept Amplifier, 15 - 100 MHz V 3.00 AM05-0005 Features n n n n n n n LGA-1 Gain: 14.5.
M/A-COM’s AM05-0005 is a coupler feedback amplifier with high intercept and compression points. This.

✔ AM05-0005 Features

n n n n n n n LGA-1 Gain: 14.5 dB Nominal IP3 of +40 dBm Typical Land Grid Array (LGA) Package Compression point of +25 dBm Typical 50 ohm impedance Test boards are ava
