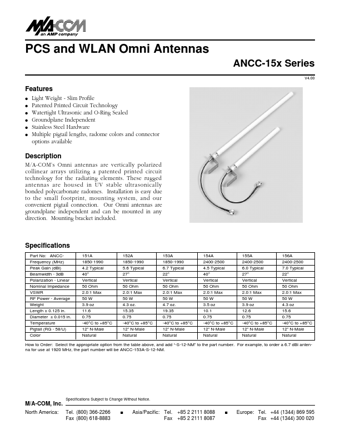

ANCC-151A Datasheet | Tyco Electronics

Features q q q q q q Light Weight - Slim Profile Patented Printed Circuit Technology Watertight Ultrasonic and O-Ring Sealed Groundplane Independent Stainless Steel Hardware Multiple pigtail lengths, radome colors and connector options available Description M/A-’s Omni antennas are vertically polarized collinear arrays utilizing a patented printed circuit technology for the radiating elements. These rugged antennas are housed in UV stable ultrasonically bonded polycarbonate radomes. Installation is easy due to the small footprint, mounting system, and our convenient pigtail connection. Our Omni antennas are groundplane independent and can be mounted in any direction. Mounting bracket included. Specifications Part No: ANCCFrequency (MHz) Peak Gain (d Bi) Beamwidth - 3d B Polarization - Linear Nominal Impedance VSWR RF Power - Average Weight Length ± 0.125 in. Diameter ± 0.015 in. Temperature Pigtail (RG - 58/U) Color 151A 1850-1990 4.2 Typical 40° Vertical 50 Ohm 2.0:1 Max 50 W 3.9 oz...
