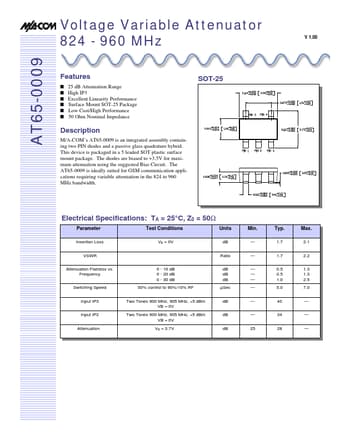

AT65-0009 Datasheet, Mhz, Tyco Electronics

AT65-0009 Features

• Mhz n 25 dB Attenuation Range n High IP3 n Excellent Linearity Performance n Surface Mount SOT-25 Package n Low Cost/High Performance n 50 Ohm Nominal Impedance SOT-25 Description M/A-COM

PDF File Details

Part number:

AT65-0009

Manufacturer:

Tyco Electronics

File Size:

225.47kb

Download:

📄 Datasheet

Description:

Voltage variable attenuator 824 - 960 mhz. M/A-COM’s AT65-0009 is an integrated assembly containing two PIN diodes and a passive glass quadrature hybrid. This device is package

AT65-0009 Application

• Applications requiring variable attenuation in the 824 to 960 MHz bandwidth. Electrical Specifications: TA = 25°C, Z0 = 50Ω Parameter Insertion Los
