CH-130-4 - 30 dB Bi-directional Coupler

Features

  • q q q CH-130-4 V2.00 C-12 High Power Handling Capability.
  • 500 Watts Very Low Insertion Loss.
  • 0.1 dB Max Low VSWR.
  • 1.1:1 Max Guaranteed Specifications.
  • (-55°C to +85°C) Dimensions in ( ) are in mm. Unless Otherwise Noted: . xxx = ±0.015 (. x = ±0.4) WEIGHT (APPROX): 10 OUNCES 283 GRAMS Operating Characteristics.
  • All specifications apply with 50 ohm source and load impedance. This product contains elements protected by United States Patent Number 3,426,298.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CH-132 Bi Directional Coupler MA-COM
CH-134 Bi-Directional Couplers MA-COM
CH-137 19.5 dB Bi-Directional Couplers MA-COM
CH-138 Bi-Directional Coupler MA-COM
CH-101 ultra-low-power ultrasonic Time-ofFlight (ToF) range sensor TDK

Other Datasheets by Tyco Electronics (now TE Connectivity)

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

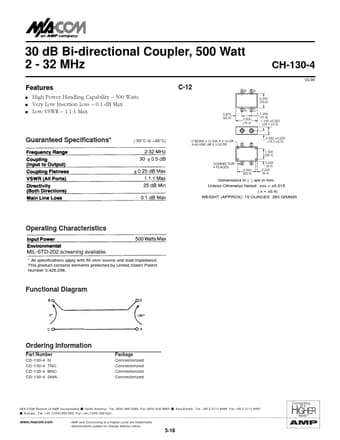

30 dB Bi-directional Coupler, 500 Watt 2 - 32 MHz Features q q q CH-130-4 V2.00 C-12 High Power Handling Capability – 500 Watts Very Low Insertion Loss – 0.1 dB Max Low VSWR – 1.1:1 Max Guaranteed Specifications* (-55°C to +85°C) Dimensions in ( ) are in mm. Unless Otherwise Noted: .xxx = ±0.015 (.x = ±0.4) WEIGHT (APPROX): 10 OUNCES 283 GRAMS Operating Characteristics * All specifications apply with 50 ohm source and load impedance. This product contains elements protected by United States Patent Number 3,426,298. Functional Diagram Ordering Information Part Number CD-130-4 N CD-130-4 TNC CD-130-4 BNC CD-130-4 SMA Package Connectorized Connectorized Connectorized Connectorized M/A-COM Division of AMP Incorporated s North America: Tel.
