CSM11-13 - Low Cost High IP3 Mixer

Tyco Electronics

📥 Download Datasheet

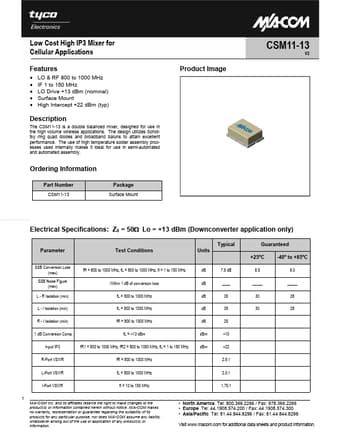

CSM11-13 Datasheet Preview — Preview of CSM11-13 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: CSM11-13
Manufacturer: Tyco Electronics
File Size: 197.28 KB
Datasheet: CSM11-13_TycoElectronics.pdf
Description: Low Cost High IP3 Mixer

CSM11-13 Product details

Description

The CSM11-13 is a double balanced mixer, designed for use in the high volume wireless applications.

Features

LO & RF 800 to 1000 MHz IF 1 to 150 MHz LO Drive +13 dBm (nominal) Surface Mount High Intercept +22 dBm (typ) CSM11-13 V2 Product Image.
