FR11-0002 - 3-Port DROP-IN CIRCULATOR

Datasheet Summary

Description

M/A-COM's drop-in circulators and isolators, designed for cellular applications, feature high performance at low cost.

These designs offer the best isolation per insertion loss ratio in the industry and are currently produced in the tens of thousands of pieces per year.

Features

  • 24 dB Isolation typical, 0.25 dB Insertion Loss typical. Custom products available with alternate configurations such as couplers, attenuators, higher power terminations, reverse circulation and termination on ports 1 or 2. Available as custom product without flange for surface mount.

📥 Download Datasheet

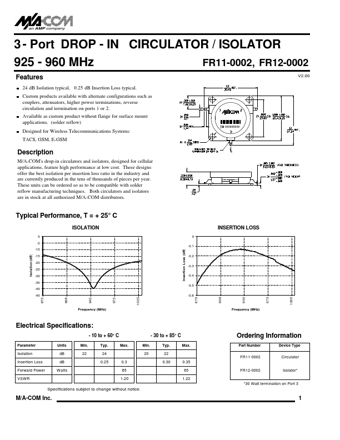

Datasheet preview – FR11-0002

Datasheet Details

Part number FR11-0002
Manufacturer Tyco Electronics
File Size 45.85 KB
Description 3-Port DROP-IN CIRCULATOR
Datasheet download datasheet FR11-0002 Datasheet
Additional preview pages of the FR11-0002 datasheet.

📁 Similar Datasheet

  • FR110 - 1A Leaded Type Fast Rectifiers (CITC)
  • FR1101F - Series Right Angle AlInGaP SMT LED (Stanley)
  • FR1105W - Dome Lens Type AllnGaP SMT LED (Stanley)
  • FR1111C - Ultra Compact AllnGaP SMT LED (Stanley)
  • FR1112C - Single Color High Brightness LED (STANLEY ELECTRIC)
  • FR1112H - Thin Type AllnGaP SMT LED (Stanley)
  • FR1117 - LOW DROP FIXED AND ADJUSTABLE POSITIVE VOLTAGE REGULATOR (First Silicon)
  • FR1117 - 1A Low Dropout Linear Regulator (fitipower)
  • FR115 - Silicon Full Wave Rectifiers (Punjab Wireless Systems)
  • FR1000BW - REVERSE CONDUCTING THYRISTORS (PST)
Other Datasheets by Tyco Electronics

Full PDF Text Transcription

Click to expand full text
3 - Port DROP - IN CIRCULATOR / ISOLATOR FR11-0002, FR12-0002 925 - 960 MHz Features 24 dB Isolation typical, 0.25 dB Insertion Loss typical. Custom products available with alternate configurations such as couplers, attenuators, higher power terminations, reverse circulation and termination on ports 1 or 2. Available as custom product without flange for surface mount applications. (solder reflow) Designed for Wireless Telecommunications Systems: TACS, GSM, E-GSM V2.00 Description M/A-COM's drop-in circulators and isolators, designed for cellular applications, feature high performance at low cost. These designs offer the best isolation per insertion loss ratio in the industry and are currently produced in the tens of thousands of pieces per year.
