HH-106 - Hybrid Junctions

Product Overview

Tyco Electronics

Part number	HH-106
Manufacturer	Tyco Electronics
File Size	84.15 KB
Description	Hybrid Junctions
Datasheet	HH-106 Datasheet
Additional preview pages of the HH-106 datasheet.

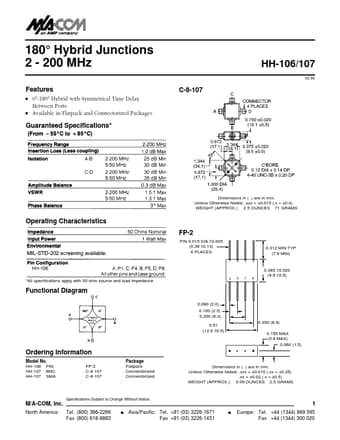

q HH-106/107 V2.00 C-8-107 q 0°-180° Hybrid with Symmetrical Time Delay Between Ports Available in Flatpack and Connectorized Packages Guaranteed Speciﬁcations.
Dimensions in ( ) are in mm. Unless Otherwise Noted: . xxx = ±0.015 (. x = ±0.4) WEIGHT (APPROX. ): 2.5 OUNCES 71 GRAMS Operating Characteristics FP-2 PIN 0.015 DIA ±0.005 (0.38 ±0.13) 8 PLACES 1 2 3 4 0.312 MIN TYP (7.9 MIN).
All speciﬁcations apply with 50 ohm source and load impedance. 5 6 7 8 0.385 ±0.020 (9.8 ±0.5.
