M76 DOUBLE-BALANCED MIXER

M76/M76C DOUBLE-BALANCED MIXER LO 2.5 TO 11.5 GHz RF 4.5 TO 9.5 GHz IF DC TO 2.0 GHz LO DRIVE +10 dBm (nominal) LOW NOISE FIGURE: 5.5 dB (TYP.) Specifications (Rev. Date: 1/02) Characteristics SSB Conversion Loss & SSB Noise Figure (max.) fR = 6 to 8 GHz, fL = 4 to 9 GHz, fI = 0.03 to 2 GHz fR = 5 to 9 GHz, fL = 4 to 9 GHz, fI = 0.03 to 1 GHz fR = 4.5 to 9.5 GHz, fL = 2.5 to 11.5 GHz, fI = 0.03 to 2 GHz fR = fL = fI = Isolation (min.) L to R fL = 2.5 to 9 GHz .

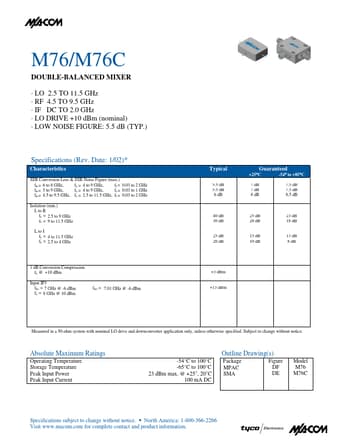

M76 Datasheet (137.31 KB)

M76 Datasheet Preview — Preview of M76 PDF

Datasheet Details

Part number:

M76

Manufacturer:

Tyco Electronics

File Size:

137.31 KB

Description:

Double-balanced mixer.
