MA4ST2600 Ultra High Ratio Si Hyperabrupt Varactor Diode

and Applications M/A-COM’s MA4ST2000 series is a highly repeatable, UHCVD/ion-implanted, hyperabrupt silicon tuning varactor in a cost effective surface mount package. This series of varactors is designed for high capacitance ratio for low battery voltage operation. It is efficient for wide band tun.

MA4ST2600 Features

* Ultra High Capacitance Ratio, C(0.1V)/C(4.7V) =18:1 C(0.1V)/C(2.7V) = 12:1 Surface Mount Plastic Packages : SC-79, SOD-323, SC-70, 3 Lead SPC Process for Superior C vs V and Q vs V Repeatability Lead-Free (RoHs Compliant) equivalents available with 260°C reflo

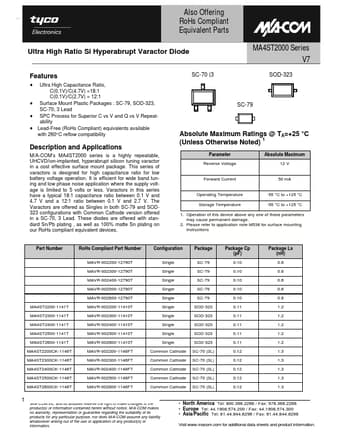

MA4ST2600 Datasheet (122.25 KB)
