MAAM-000070 Datasheet, Amplifier, Tyco Electronics

MAAM-000070 Features

  • Amplifier
  • Ideal for high linearity applications over a wide dynamic range
  • Low Noise Figure
  • High IP3
  • Single +5 V Supply Voltage
  • Lead-Free SOT-89 P

PDF File Details

Part number:

MAAM-000070

Manufacturer:

Tyco Electronics

File Size:

461.49kb

Download:

📄 Datasheet

Description:

High dynamic range amplifier. M/A-COM’s MAAMSS0070 broadband gain stage is a GaAs MMIC amplifier in a lead-free SOT-89 surface mount plastic package. It can be ope

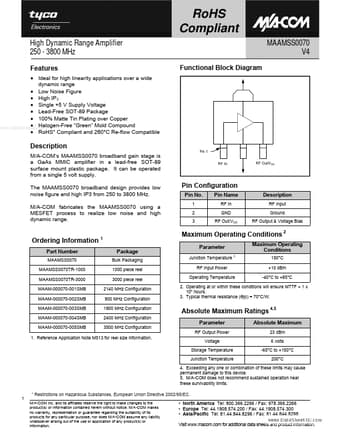

Datasheet Preview: MAAM-000070 📥 Download PDF (461.49kb)
Page 2 of MAAM-000070 Page 3 of MAAM-000070

MAAM-000070 Application

  • Applications over a wide dynamic range
  • Low Noise Figure
  • High IP3
  • Single +5 V Supply Voltage
  • Lead-Free SOT-89
