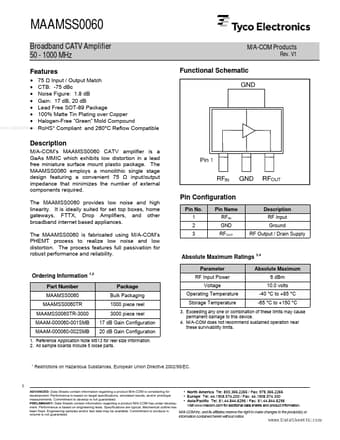

MAAM000060
Features
- 75 Ω Input / Output Match
- CTB: -75 d Bc
- Noise Figure: 1.8 d B
- Gain: 17 d B, 20 d B
- Lead Free SOT-89 Package
- 100% Matte Tin Plating over Copper
- Halogen-Free “Green” Mold pound ..
- Ro HS- pliant and 260°C Reflow patible
M/A- Products
Rev. V1
Functional Schematic
Description
M/A-’s MAAMSS0060 CATV amplifier is a Ga As MMIC which exhibits low distortion in a lead free miniature surface mount plastic package. The MAAMSS0060 employs a monolithic single stage design featuring a convenient 75 Ω input/output impedance that minimizes the number of external ponents required. The MAAMSS0060 provides low noise and high linearity. It is ideally suited for set top boxes, home gateways, FTTX, Drop Amplifiers, and other broadband internet based appliances. The MAAMSS0060 is fabricated using M/A-’s PHEMT process to realize low noise and low distortion. The process features full passivation for robust performance and reliability.
Pin Configuration
Pin No. 1 2 3 Pin Name RFIN GND...
