MAAMSS0050 - RF Driver Amplifier

Description

M/A-COM’s MAAMSS0050 RF driver amplifier is a GaAs MMIC which exhibits exceptional linearity performance as well as featuring high gain in a lead-free miniature SOT-89 surface mount plastic package.

The device runs off a single +5 volt supply and draws 420 mA typically.

Features

  • Broadband Operation.
  • Output Intercept Point: 40 dBm over a 20 dB Power Range.
  • Excellent ACPR performance.
  • High Efficiency.
  • Lead-Free SOT-89 Package.
  • 100% Matte Tin Plating over Copper.
  • Halogen-Free “Green” Mold Compound.
  • RoHS.
  • Compliant and 260°C Reflow Compatible MAAMSS0050 V1 Functional Schematic.

📥 Download Datasheet

Datasheet preview – MAAMSS0050

Datasheet Details

Part number MAAMSS0050
Manufacturer Tyco Electronics
File Size 378.03 KB
Description RF Driver Amplifier
Datasheet download datasheet MAAMSS0050 Datasheet
Additional preview pages of the MAAMSS0050 datasheet.

📁 Similar Datasheet

  • MAAMSS0006 - High Dynamic Range GaAs HBT Amplifier / 50 - 450 MHz (Tyco)
  • MAAMSS0007 - High Dynamic Range GaAs Amplifier / 800 - 2500 MHz (Tyco)
  • MAAMSS0017 - Broadband IF Driver Amplifier 50 - 450 MHz (Tyco)
  • MAAMSS0044 - Push Pull CATV Amplifier (MA-COM)
  • MAAMSS0060 - Broadband CATV Amplifier (MA-COM)
  • MAAM-007239 - Broadband CATV Single Ended 3-Way Active Splitter (MA-COM)
  • MAAM-007805 - Broadband CATV Single Ended 2-Way Active Splitter (MACOM)
  • MAAM-007807 - Broadband CATV Amplifier (MACOM)
  • MAAM-007866-0P1R00 - Broadband Driver Amplifier (MACOM)
  • MAAM-008200 - Cascadable Amplifier (MA-COM)
Other Datasheets by Tyco Electronics

Full PDF Text Transcription

Click to expand full text

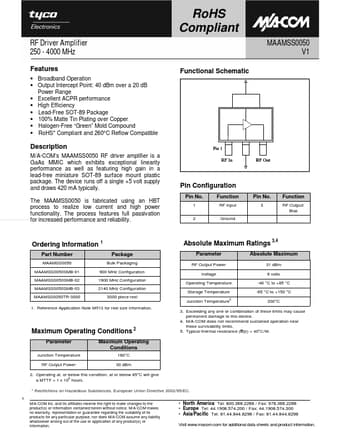

RoHS Compliant RF Driver Amplifier 250 - 4000 MHz Features • Broadband Operation • Output Intercept Point: 40 dBm over a 20 dB Power Range • Excellent ACPR performance • High Efficiency • Lead-Free SOT-89 Package • 100% Matte Tin Plating over Copper • Halogen-Free “Green” Mold Compound • RoHS* Compliant and 260°C Reflow Compatible MAAMSS0050 V1 Functional Schematic Description M/A-COM’s MAAMSS0050 RF driver amplifier is a GaAs MMIC which exhibits exceptional linearity performance as well as featuring high gain in a lead-free miniature SOT-89 surface mount plastic package. The device runs off a single +5 volt supply and draws 420 mA typically. The MAAMSS0050 is fabricated using an HBT process to realize low current and high power functionality. The process features full passivation www.
