MAAMSS0057 - RF Driver Amplifier

Description

M/A-COM’s MAAMSS0057 RF driver amplifier is a two stage GaAs MMIC which exhibits exceptional linearity performance as well as featuring high gain in a lead-free SOIC-8EP surface mount plastic package.

The device runs off a single +5 volt supply and draws 490 mA typically.

Features

  • Broadband Operation Output Intercept Point Greater than +45 dBm Excellent ACPR performance High Efficiency Lead-Free SOIC-8EP Package 100% Matte Tin Plating over Copper Halogen-Free “Green” Mold Compound RoHS.
  • Compliant and 260°C Reflow Compatible MAAMSS0057 V2 Functional Block Diagram.

📥 Download Datasheet

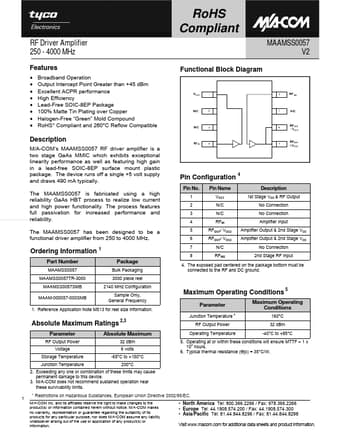

Datasheet preview – MAAMSS0057
