MAFL-008098-CD0550 - CATV Diplex Filter

Datasheet Summary

Description

M/A-COM’s MAFL-008098-CD0550 is a low cost, non hermetically sealed Diplex Filter unit designed for CATV applications.

Features

  • 75 Ohm Surface Mount RoHS.
  • Compliant RoHS version of MAFLES0083 Technology used in this product is patent pending MAFL-008098-CD0550 V1 Functional Schematic.

📥 Download Datasheet

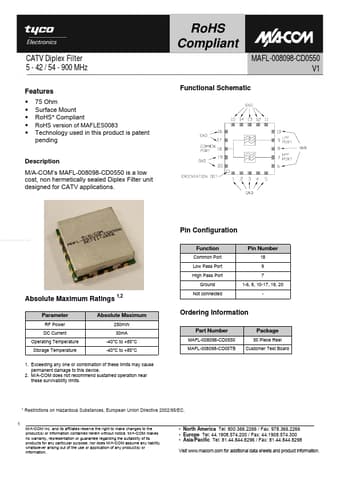

Datasheet preview – MAFL-008098-CD0550

Datasheet Details

Part number MAFL-008098-CD0550
Manufacturer Tyco Electronics
File Size 164.50 KB
Description CATV Diplex Filter
Datasheet download datasheet MAFL-008098-CD0550 Datasheet
Additional preview pages of the MAFL-008098-CD0550 datasheet.

📁 Similar Datasheet

Other Datasheets by Tyco Electronics

Full PDF Text Transcription

Click to expand full text
RoHS Compliant CATV Diplex Filter 5 - 42 / 54 - 900 MHz Features • • • • • 75 Ohm Surface Mount RoHS* Compliant RoHS version of MAFLES0083 Technology used in this product is patent pending MAFL-008098-CD0550 V1 Functional Schematic Description M/A-COM’s MAFL-008098-CD0550 is a low cost, non hermetically sealed Diplex Filter unit designed for CATV applications. Pin Configuration www.DataSheet4U.com Function Common Port Low Pass Port High Pass Port Ground Pin Number 18 9 7 1-6, 8, 10-17, 19, 20 - Absolute Maximum Ratings 1,2 Parameter RF Power DC Current Operating Temperature Storage Temperature Not connected Absolute Maximum 250mW 30mA -40°C to +85°C -40°C to +85°C Ordering Information Part Number MAFL-008098-CD0550 MAFL-008098-CD05TB Package 50 Piece Reel Customer Test Board 1.
