MASW-004100-1193 Datasheet, Switch, Tyco Electronics

MASW-004100-1193 Features

  • Switch
  • Ultra Broad Bandwidth: 50MHz to 26GHz 0.9 Insertion Loss , 34dB Isolation at 20GHz 50nS Switching Speed Reliable, Fully Monolithic, Glass Encapsu

PDF File Details

Part number:

MASW-004100-1193

Manufacturer:

Tyco Electronics

File Size:

230.89kb

Download:

📄 Datasheet

Description:

Monolithic pin sp4t diode switch. The MASW-004100-1193 is a SP4T series-shunt broad band switch made with M/A-COM’s unique HMICTM (Heterolithic Microwave Integrated Ci

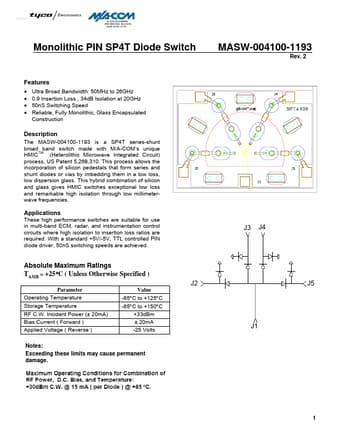

Datasheet Preview: MASW-004100-1193 📥 Download PDF (230.89kb)
Page 2 of MASW-004100-1193 Page 3 of MASW-004100-1193

MASW-004100-1193 Application

  • Applications These high performance switches are suitable for use in multi-band ECM, radar, and instrumentation control circuits where high isolatio
