MZ9313 TRIPLE-BALANCED MIXER

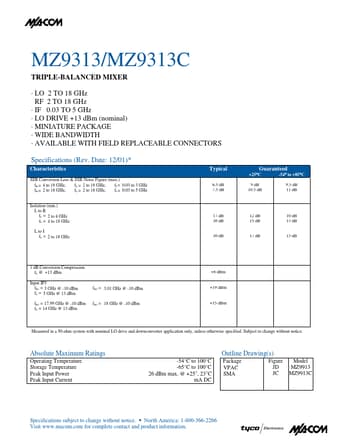

MZ9313/MZ9313C TRIPLE-BALANCED MIXER LO 2 TO 18 GHz RF 2 TO 18 GHz IF 0.03 TO 5 GHz LO DRIVE +13 dBm (nominal) MINIATURE PACKAGE WIDE BANDWIDTH AVAILABLE WITH FIELD REPLACEABLE CONNECTORS Specifications (Rev. Date: 12/01) Characteristics SSB Conversion Loss & SSB Noise Figure (max.) fR = 4 to 18 GHz, fL = 2 to 18 GHz, fI = 0.03 to 3 GHz fR = 2 to 18 GHz, fL = 2 to 18 GHz, fI = 0.03 to 5 GHz fR = fL = fI = fR = fL = fI = Isolation (min.) L to R fL = 2 to 4.

MZ9313 Datasheet (122.44 KB)
