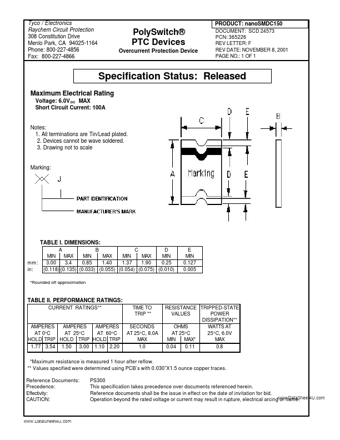

Tyco / Electronics Raychem Circuit Protection 308 Constitution Drive Menlo Park, CA 94025-1164 Phone: 800-227-4856 Fax: 800-227-4866 PRODUCT: nanoSMDC150 PolySwitch® PTC Devices Overcurrent Protection Device DOCUMENT: SCD 24573 PCN: 365226 REV LETTER: F REV DATE: NOVEMBER 8, 2001 PAGE NO.: 1 OF 1 Specification Status: Released Maximum Electrical Rating Voltage: 6.0V DC MAX Short Circuit Current: 100A Notes: 1.
All terminations are Tin/Lead plated.
2.
Devices cannot be wave soldered.
3.
Draw
