PA1159 2300-2400 MHz. Ultra Linear Power Amplifier

PA1159 Description

PA1159 4 Watt 2300-2400 MHz.Ultra Linear Power Amplifier .

PA1159 Features

* (typical values) High IP3 +52.0 dBm. Low NF 2.7 dB. High Output Power +36.0 dBm. Low Cost Typical Performance @ 25°C Parame te r Frequency Gain Gain Flatness Pout @ 1dB. comp. Noise Figure VSWR (Input/Output) IP3 (two tone) Supply Required 23.5 ±0.5 36.2 2. 7 1.5:1/2:1 +52.0 +10/1700 +50.0 +10/18

📥 Download Datasheet

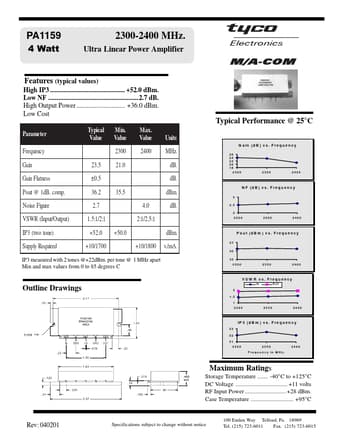

Preview of PA1159 PDF

Datasheet Details

Part number
PA1159
Manufacturer
Tyco Electronics
File Size
61.61 KB
Datasheet
PA1159_TycoElectronics.pdf
Description
2300-2400 MHz. Ultra Linear Power Amplifier
