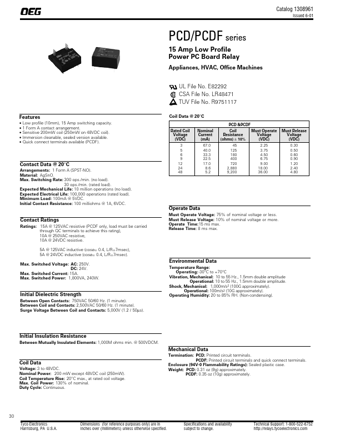

PCD-103D1MH
Features
- Low profile (10mm), 15 Amp switching capacity.
- 1 Form A contact arrangement.
- Sensitive 200m W coil (250m W on 48VDC coil).
- Immersion cleanable, sealed version available.
- Quick connect terminals available (PCDF).
Coil Data @ 20°C
PCD &PCDF Rated Coil Voltage (VDC) 3 5 6 9 12 24 48 Nominal Current (m A) 67.0 40.0 33.3 22.5 17.0 8.6 5.2 Coil Resistance (ohms) ± 10% 45 125 180 400 720 2,880 9,200 Must Operate Voltage (VDC) 2.25 3.75 4.50 6.75 9.00 18.00 36.00 Must Release Voltage (VDC) 0.30 0.50 0.60 0.90 1.20 2.40 4.80
Contact Data @ 20°C
Arrangements: 1 Form A (SPST-NO). Material: Ag Sn O. Max. Switching Rate: 300 ops./min. (no load). 30 ops./min. (rated load). Expected Mechanical Life: 10 million operations (no load). Expected Electrical Life: 100,000 operations (rated load). Minimum Load: 100m A @ 5VDC. Initial Contact Resistance: 100 milliohms @ 1A, 6VDC.
Operate Data Contact Ratings
Ratings: 15A @ 125VAC resistive (PCDF only, load must be carried through QC terminals...
