PCD - 15 Amp Low Profile Power PC Board Relay

PCD Description

Catalog 1308961 Issued 6-01 PCD/PCDF series 15 Amp Low Profile Power PC Board Relay Appliances, HVAC, Office Machines UL File No.E82292 CSA File No..

PCD Features

* Low profile (10mm), 15 Amp switching capacity.
* 1 Form A contact arrangement.
* Sensitive 200mW coil (250mW on 48VDC coil).
* Immersion cleanable, sealed version available.
* Quick connect terminals available (PCDF). Coil Data @ 20°C PCD &PCDF Rated Coil V

📥 Download Datasheet

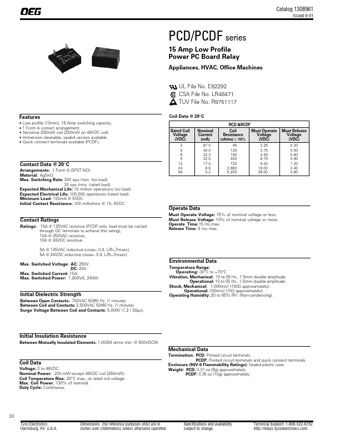

Preview of PCD PDF
datasheet Preview Page 2

Datasheet Details

Part number
PCD
Manufacturer
Tyco Electronics
File Size
77.77 KB
Datasheet
PCD_TycoElectronics.pdf
Description
15 Amp Low Profile Power PC Board Relay
