S11 THIN FILM SPST SWITCH

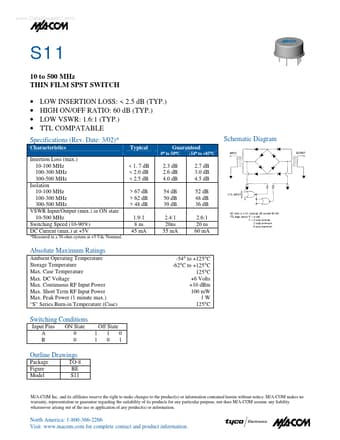

www.DataSheet4U.com S11 10 to 500 MHz THIN FILM SPST SWITCH LOW INSERTION LOSS: < 2.5 dB (TYP.) HIGH ON/OFF RATIO: 60 dB (TYP.) LOW VSWR: 1.6:1 (TYP.) TTL COMPATABLE Schematic Diagram Typical < 1. 7 dB < 2.0 dB < 2.5 dB > 67 dB > 62 dB > 48 dB 1.9:1 8 ns 45 mA 0° to 50°C Specifications (Rev. Date: 3/02) Characteristics Insertion Loss (max.) 10-100 MHz 100-300 MHz 300-500 MHz Isolation 10-100 MHz 100-300 MHz 300-500 MHz VSWR Input/Output (max.) in ON.
