T7NV5D4-09-WG-A - Miniature Power PCB Relay

Download the T7NV5D4-09-WG-A datasheet PDF (T7N included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for miniature power pcb relay.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (T7N_TycoElectronics.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • T7N - 10 Amp Miniature PC Board Relay (Siemens)
  • T7NS1D1-12 - 10 Amp Miniature PC Board Relay (Siemens)
  • T7NS1D1-24 - 10 Amp Miniature PC Board Relay (Siemens)
  • T7NS5D1-05 - 10 Amp Miniature PC Board Relay (Siemens)
  • T7NS5D1-12 - 10 Amp Miniature PC Board Relay (Siemens)
  • T7NS5D1-24 - 10 Amp Miniature PC Board Relay (Siemens)
  • T7NS5D1-48 - 10 Amp Miniature PC Board Relay (Siemens)
Other Datasheets by Tyco Electronics

Full PDF Text Transcription

Click to expand full text

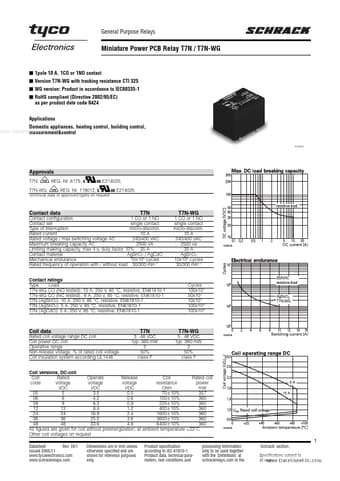

General Purpose Relays Miniature Power PCB Relay T7N / T7N-WG I 1pole 10 A, 1CO or 1NO contact I Version T7N-WG with tracking resistance CTI 325 I WG version: Product in accordance to IEC60335-1 I RoHS compliant (Directive 2002/95/EC) as per product date code 0424 Applications Domestic appliances, heating control, building control, www.DataShemet4eUas.cuoremment&control F0189-B Approvals V ZT7N: REG.-Nr. 6175, E214025; V ZT7N-WG: REG.-Nr. 119012, E214025 Technical data of approved types on request Contact data T7N Contact configuration 1 CO or 1 NO Contact set single contact Type of interruption micro-disconn. Rated current 10 A Rated voltage / max.
