V23105
Features
- Standard DIL relay
- Dimensions 20 x 10 x 11 mm,
0.795 x 0.394 x 0.433 inch
- Switching and continous current 3 A
- 2 changeover contacts (2 form C / DPDT)
- Single contacts
- Immersion cleanable
- Four different coil sensitivities
- (150, 200, 400, > 500 m W)
- Surge voltage resistance meets FCC Part 68 require- ment: 1.5 k V (10 / 700 µs) between coil and contacts Typical applications
- munications equipment
- Office equipment
- Measurement and control equipment
- Entertainment electronics
- Medical Equipment
- Consumer electronics
108-98007 Rev A
All specifications subject to change. Consult Tyco Electronics for latest specifications.
3 of 12
Dimensions
Tele-, Signal and RF Relays

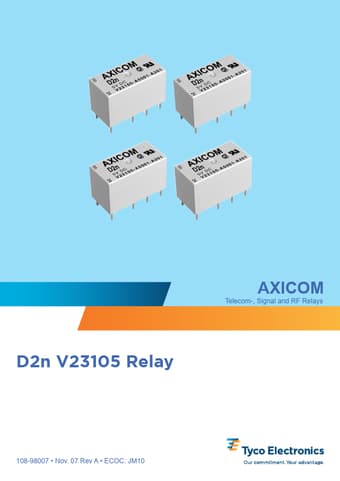

D2n V23105 Relay
THT mm inch
L 20.2 + 0.05/-0.02 W 10 + 0.05/-0.02 H 11 + 0.1/-0.2
0.795 + 0.002/-0.0008 0.393 + 0.002/-0.0008 0.433 + 0.004/-0.008
T 3.1 ± 0.3 T1 N / A T2 7.62 ± 0.15 S 0.55 Tw 0.5
0.122 ± 0.011 N/A
0.3 ± 0.005 0.021 0.020
THT...
