ZEN056 Polymer Protected Zener Diode

www.DataSheet4U.com PolyZen Devices PolyZen Devices Polymer Protected Zener Diode PolyZen devices are polymer enhanced precision Zener diode micro-assemblies that help protect sensitive electronics from damage caused by inductive voltage spikes, voltage transients, use of incorrect power supplies and reverse bias. The PolyZen micro-assembly incorporates a stable Zener diode for precise voltage clamping and a resistively non-linear, polymeric positive temperature coefficient (PPTC) layer that r.

ZEN056 Features

* RoHS compliant

* Overvoltage transient suppression

* Hold currents up to 2.3A

* Time delayed, overvoltage trip

* Time delayed, reverse bias trip

* Power handling on the order of 30 watts

* Integrated device construction Applications

ZEN056_TycoElectronics.pdf

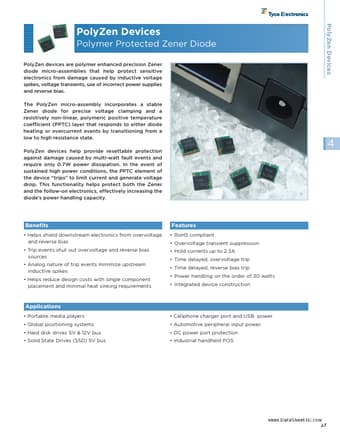

ZEN056 Datasheet Preview — Preview of ZEN056 PDF

Datasheet Details

Part number:

ZEN056

Manufacturer:

Tyco Electronics

File Size:

349.86 KB

Description:

Polymer protected zener diode.
