2EDL4C Datasheet | Tyco Electronics

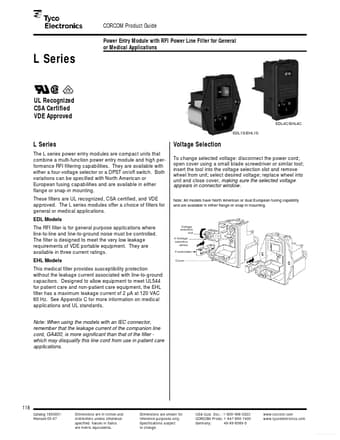

COR Product Guide Power Entry Module with RFI Power Line Filter for General or Medical Applications L Series UL Recognized CSA Certified VDE Approved EDL4C/EHL4C EDL1S/EHL1S L Series The L series power entry modules are pact units that bine a multi-function power entry module and high performance RFI filtering capabilities. They are available with either a four-voltage selector or a DPST on/off switch. Both variations can be specified with North American or European fusing capabilities and are available in either flange or snap-in mounting. These filters are UL recognized, CSA certified, and VDE approved. The L series modules offer a choice of filters for general or medical applications. EDL Models The RFI filter is for general purpose applications where line-to-line and line-to-ground noise must be controlled. The filter is designed to meet the very low leakage requirements of VDE portable equipment. They are available in three current ratings. EHL Models This medical filter...
