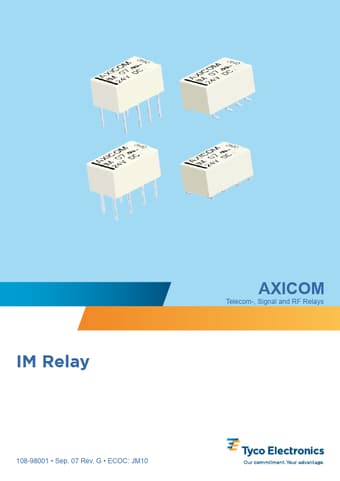

IM05TS Datasheet Preview — This datasheet PDF includes multiple part numbers: IM05TS, IM00TS. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IM05TS, IM00TS
Manufacturer	Tyco
File Size	1.03 MB
Description	IM Relay
Datasheet	IM00TS-Tyco.pdf
Note	This datasheet PDF includes multiple part numbers: IM05TS, IM00TS. Please refer to the document for exact specifications by model.

IM05TS Product details

Features

Telecom/signal relay (dry circuit, test access, ringing).
Slim line 10 x 6 mm, 0.39 x 0.24 inch.
Low profile 5.65 mm, 0.222 inch.
Minimum board-space 60 mm2.
Switching current 2 A / 5 A.
2 changeover contacts (2 form C / DPDT).
Bifurcated contacts, gold plated.
High sensitivity results in low nominal power consumption 140 mW for non latching standard 100 mW for latching version and non latching high sensitive versio.
