IM21GR IM Relay

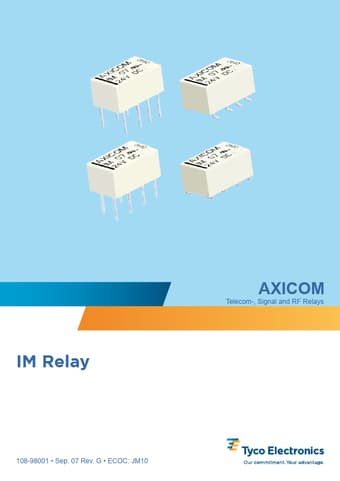

IM Relay AXICOM Telecom-, Signal and RF Relays 108-98001 Sep. 07 Rev. G ECOC: JM10 AXICOM Telecom-, Signal and RF Relays IM Relay 108-98001 Rev. G Disclaimer While Tyco Electronics has made every reasonable effort to ensure the accuracy of the information in this datasheet, Tyco Electronics does not guarantee that it is error-free, nor does Tyco Electronics make any other representation, warranty or guarantee that the information is accurate, correct, reliable or current..

IM21GR Features

* Telecom/signal relay (dry circuit, test access, ringing)

* Slim line 10 x 6 mm, 0.39 x 0.24 inch

* Low profile 5.65 mm, 0.222 inch

* Minimum board-space 60 mm2

* Switching current 2 A / 5 A

* 2 changeover contacts (2 form C / DPDT)

* B

IM21GR Datasheet (1.03 MB)

IM21GR Datasheet Preview — Preview of IM21GR PDF

Datasheet Details

Part number:

IM21GR

Manufacturer:

Tyco

File Size:

1.03 MB

Description:

Im relay.
