IM40JR IM Relay

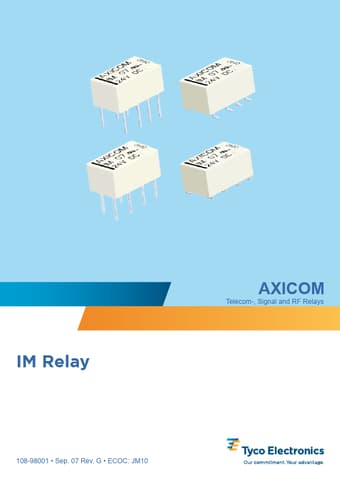

IM Relay AXICOM Telecom-, Signal and RF Relays 108-98001 Sep. 07 Rev. G ECOC: JM10 AXICOM Telecom-, Signal and RF Relays IM Relay 108-98001 Rev. G Disclaimer While Tyco Electronics has made every reasonable effort to ensure the accuracy of the information in this datasheet, Tyco Electronics does not guarantee that it is error-free, nor does Tyco Electronics make any other representation, warranty or guarantee that the information is accurate, correct, reliable or current..

IM40JR Features

* Telecom/signal relay (dry circuit, test access, ringing)

* Slim line 10 x 6 mm, 0.39 x 0.24 inch

* Low profile 5.65 mm, 0.222 inch

* Minimum board-space 60 mm2

* Switching current 2 A / 5 A

* 2 changeover contacts (2 form C / DPDT)

* B

IM40JR, IM40TS Datasheet

This datasheet PDF includes multiple part numbers: IM40JR, IM40TS. Please refer to the document for exact specifications by model.
IM40JR Datasheet Preview Page 2 IM40JR Datasheet Preview Page 3

Datasheet Details

Part number:

IM40JR, IM40TS

Manufacturer:

Tyco

File Size:

1.03 MB

Description:

Im relay.

This datasheet PDF includes multiple part numbers: IM40JR, IM40TS. Please refer to the document for exact specifications by model.
