MD22-0002-MUC

Surface Mount Mixer 700 - 1000 MHz

MD22-0002-MUC Features

* q q q q q q MD22-0002-MUC V1.00 Low Cost 0.510" x 0.485" Surface Mount Package 4.5 dB Conversion Gain High Input Third Order Intercept Point Low LO Power: +5 dBm 25 dB LO Leakage DC Supply +8 volts @ 75 mA Typical .430 2X 10.92 .080 2X 2.03 .510 12.95 1 .485 12.32 3 .005 0.13 .500 12.7 4 2 .375

MD22-0002-MUC General Description

M/A-COM’s MD22-0002-MUC is a low cost cellular band mixer preamp in a surface mount pc board package. This device offers conversion gain of 5 dB and excellent input third order intercept point for an input LO power of +5 dBm. Its price, size, and overall electrical performance make it an ideal choic.

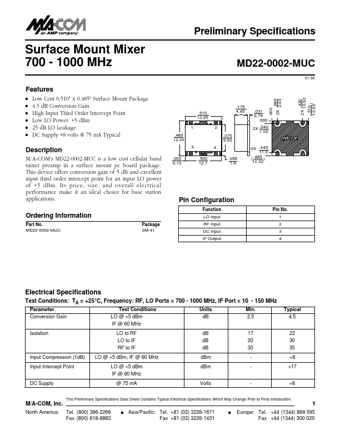

MD22-0002-MUC Datasheet (68.20 KB)

Preview of MD22-0002-MUC PDF

Datasheet Details

Part number:

MD22-0002-MUC

Manufacturer:

Tyco

File Size:

68.20 KB

Description:

Surface mount mixer 700 - 1000 mhz.
