MD59-0021 - PCS CDMA LNA / Downconverter 1.8-2.0 GHz

Tyco

📥 Download Datasheet

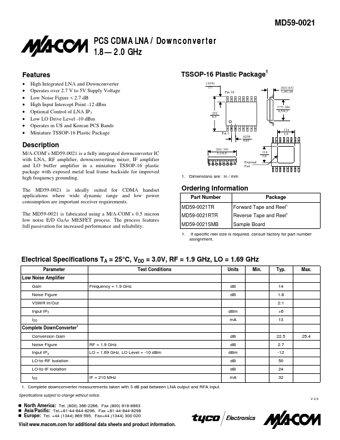

MD59-0021 Datasheet Preview — Preview of MD59-0021 PDF

Datasheet Details

Part number	MD59-0021
Manufacturer	Tyco
File Size	123.90 KB
Description	PCS CDMA LNA / Downconverter 1.8-2.0 GHz
Datasheet	MD59-0021_TycoElectronics.pdf

MD59-0021 Product details

Description

M/A-COM’s MD59-0021 is a fully integrated downconverter IC with LNA, RF amplifier, downconverting mixer, IF amplifier and LO buffer amplifier in a miniature TSSOP-16 plastic package with exposed metal lead frame backside for improved high frequency grounding.

Features

High Integrated LNA and Downconverter Operates over 2.7 V to 5V Supply Voltage Low Noise Figure < 2.7 dB High Input Intercept Point -12 dBm Optional Control of LNA IP3 Low LO Drive Level -10 dBm Operates in US and Korean PCS Bands Miniature TSSOP-16 Plastic Package TSSOP-16 Plastic Package1 (.039) (1) Pin 16 .041/.031 1,05/,80 .252 6,4 .177/.169 4,5/4,3 Pin 1 .0256 0,65 .201/.193 5,1/4,9 Exposed Pad .118 3,0 De.
