OSA-SH-2xx

(OSA Series) Power PC Board Relay

OSA-SH-2xx Features

* Meet UL TV-3 and CSA TV-4 rating available for DM5 type.

* 2 Form A contact arrangements.

* Immersion cleanable, sealed version available.

* Meet 3,000V dielectric voltage between coil and contacts.

* Meet 5,000V surge voltage between coil and contacts (1.2

OSA-SH-2xx Datasheet (151.48 KB)

Preview of OSA-SH-2xx PDF

Datasheet Details

Part number:

OSA-SH-2xx

Manufacturer:

Tyco

File Size:

151.48 KB

Description:

(osa series) power pc board relay.

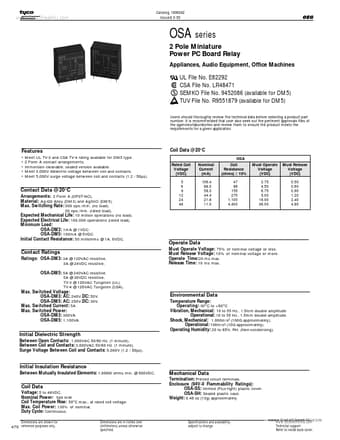

www.DataSheet4U.com Catalog 1308242 Issued 3-03 OEG OSA series 2 Pole Miniature Power PC Board Relay Appliances, Audio Equipment, Office Machines U.
