P30 - Definite Purpose Magnetic Contactor

📥 Download Datasheet

Overview

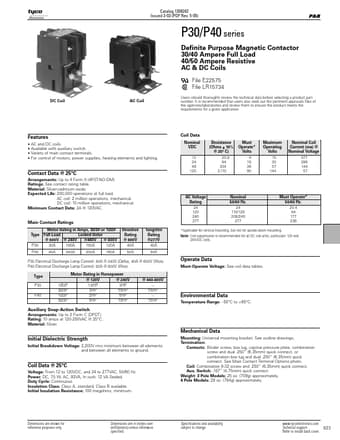

www.DataSheet.co.kr Catalog 1308242 Issued 3-03 (PDF Rev.

5-05) P&B P30/P40 series Definite Purpose Magnetic Contactor 30/40 Ampere Full Load 40/50 Ampere Resistive AC & DC Coils File E22575 File LR15734 DC Coil AC Coil Users should thoroughly review the technical data before selecting a product part number.

It is recommended that users also seek out the pertinent approvals files of the agencies/laboratories and review them to ensure the product meets the requirements for a given application.

Key Features

  • AC and DC coils.
  • Available with auxiliary switch.
  • Variety of main contact terminals.
  • For control of motors, power supplies, heating elements and lighting. Coil Data Nominal VDC 12 24 48 120 Resistance (Ohms ± 10% @ 25° C) 20.8 84 334 2,110 Must Operate.
  • Volts 9 18 36 90 Maximum Operating Volts 15 30 57 144 Nominal Coil Current (ma) @ Nominal Voltage 577 286 144 57 Contact Data @ 25°C Arrangements: Up to 4 Form X (4PST-NO-DM) Ratings: See contact rati.
