PCF-106D2M - 25A Miniature Power PC Board Relay

Datasheet Summary

Features

  • Meet UL 508, CSA, TUV requirements.
  • 1 Form A contact arrangements.
  • Quick connect terminal type and PC board type.
  • Meet 5,000V dielectric voltage between coil and contacts.
  • Meet 10,000V surge voltage between coil and contacts (1.2 / 50µs). Coil Data @ 20°C PCF / PCFN Rated Coil Voltage (VDC) 06 09 12 24 Nominal Current (mA) 150.0 100.0 75.0 37.5 Coil Resistance (ohms) ± 10% 40 90 160 640 Must Operate Voltage (VDC) 4.50 6.75 9.00 18.00 Must Releas.

📥 Download Datasheet

Datasheet preview – PCF-106D2M

Datasheet Details

Part number PCF-106D2M
Manufacturer Tyco
File Size 296.18 KB
Description 25A Miniature Power PC Board Relay
Datasheet download datasheet PCF-106D2M Datasheet
Additional preview pages of the PCF-106D2M datasheet.

📁 Similar Datasheet

  • PCF-3F - PHASE COMPARATORS (Merrimac Industries)
  • PCF0201 - Precision Thin Film Nichrome Chip Resistors (TT electronics)
  • PCF0330 - (PCF0xx0) CMOS Gate Arrays (Mullard)
  • PCF0402 - Precision Thin Film Nichrome Chip Resistors (TT electronics)
  • PCF0450 - (PCF0xx0) CMOS Gate Arrays (Mullard)
  • PCF0603 - Precision Thin Film Nichrome Chip Resistors (TT electronics)
  • PCF0700 - Gate Arrays (Mullard)
  • PCF0700 - (PCF0xx0) CMOS Gate Arrays (Mullard)
  • PCF0805 - Precision Thin Film Nichrome Chip Resistors (TT electronics)
  • PCF0E101MCL1GS - ALUMINUM ELECTROLYTIC CAPACITORS (Nichicon)
Other Datasheets by Tyco

Full PDF Text Transcription

Click to expand full text

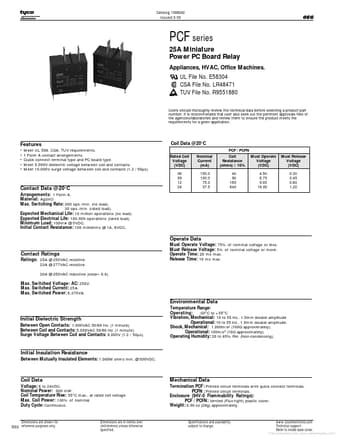

Catalog 1308242 Issued 3-03 OEG PCF series 25A Miniature Power PC Board Relay Appliances, HVAC, Office Machines. UL File No. E58304 CSA File No. LR48471 TUV File No. R9551880 Users should thoroughly review the technical data before selecting a product part number. It is recommended that user also seek out the pertinent approvals files of the agencies/laboratories and review them to ensure the product meets the requirements for a given application. Features • Meet UL 508, CSA, TUV requirements. • 1 Form A contact arrangements. • Quick connect terminal type and PC board type. • Meet 5,000V dielectric voltage between coil and contacts. • Meet 10,000V surge voltage between coil and contacts (1.2 / 50µs).
