RT114024F, RT114012F - 16 Amp PC Board Miniature Relay

Tyco

Datasheet Details

Part number	RT114024F, RT114012F
Manufacturer	Tyco
File Size	134.19 KB
Description	16 Amp PC Board Miniature Relay

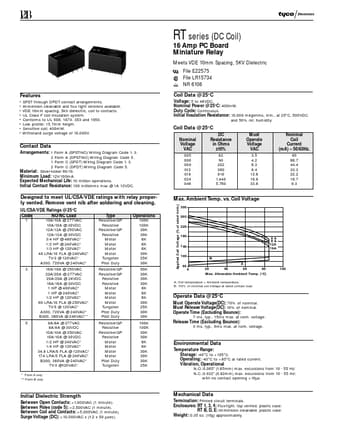

Datasheet	RT114012F-Tyco.pdf
Note	This datasheet PDF includes multiple part numbers: RT114024F, RT114012F. Please refer to the document for exact specifications by model.

SPST through DPDT contact arrangements.
Immersion cleanable and flux tight versions available.
VDE 10mm spacing, 5kV dielectric, coil to contacts.
UL Class F coil insulation system.
Conforms to UL 508, 1873, 353 and 1950.
Low profile; 15.7mm height.
Sensitive coil; 400mW.
Withstand surge voltage of 10,000V. Contact Data Arrangements: 1 Form A (SPST-NO) Wiring Diagram Code 1, 3. 2 Form A (DPST-NO) Wiring Diagram Code.
