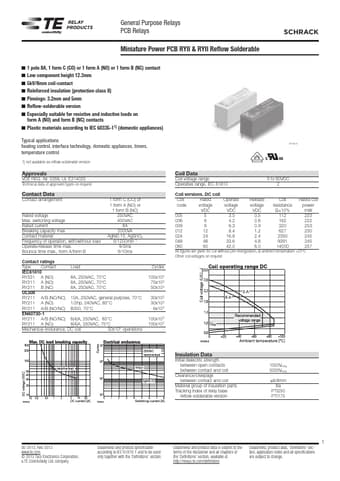

General Purpose Relays PCB Relays Miniature Power PCB RYII & RYII Reflow Solderable
n 1
SCHRACK
pole 8A, 1 form C (CO) or 1 form A (NO) or 1 form B (NC) contact component height 12.3mm n 5kV/8mm coil-contact n Reinforced insulation (protection class II) n Pinnings: 3.2mm and 5mm n Reflow-solderable version n Especially suitable for resistive and inductive loads on form A (NO) and form B (NC) contacts n Plastic materials according to IEC 60335-11) (domestic appliances)
n Low
Typical applications heating control, interface technology, domestic appliances, timers, temperature control
1) not available as reflow-solderable version
F0142-E
Z
Coil Data
Coil voltage range Operative range, IEC 61810 5 to 60VDC 2
Approvals
VDE REG.-Nr.
RY611012 Datasheet
