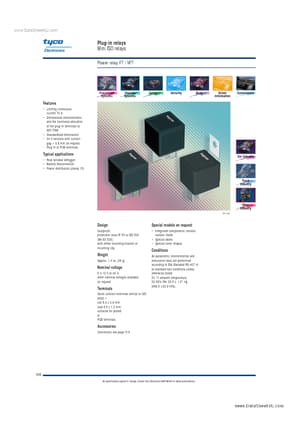

datasheet Preview Page 1 from Datasheet4u.com

VF7-11D11, VF7-11F11 Plug In Relays

www.DataSheet4U.com Plug-in relays Mini ISO relays Power relay F7 / VF7 Powertrain Systems Chassis Systems Safety Security Body Driver Informat.

VF7-11F11_Tyco.pdf

VF7-11D11 Datasheet Preview — This datasheet PDF includes multiple part numbers: VF7-11D11, VF7-11F11. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VF7-11D11, VF7-11F11

Manufacturer:

Tyco

File Size:

262.91 KB

Description:

Plug In Relays

Note:

This datasheet PDF includes multiple part numbers: VF7-11D11, VF7-11F11.
Please refer to the document for exact specifications by model.

Features

* Limiting continuous current 70 A
* Dimensional characteristics and the functional allocation of the plug-in terminals to ISO 7588
* Standardized dimensions

Applications

* Rear window defogger
* Battery disconnection
* Power distribution (clamp 15) Car Industry Truck Industry Other Industry 134_kop2 Design Dustproof; protection class IP 54 to IEC 529 (EN 60 529); with either mounting bracket or mounting clip Special models on request
