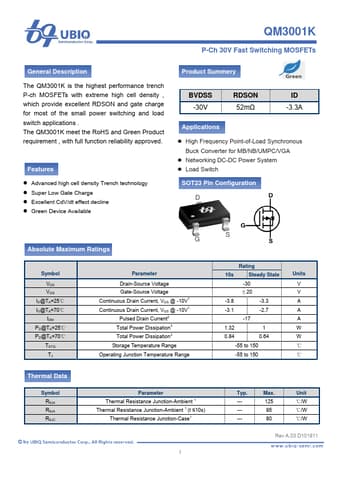

Description The QM3001K is the highest performance trench P-ch MOSFETs with extreme high cell density , which provide excellent RDSON and gate charge for most of the small power switching and load switch applications . The QM3001K meet the Ro HS and Green Product requirement , with full function reliability approved. Features z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent Cd V/dt effect decline z Green Device Available Product Summery BVDSS -30V RDSON 52mΩ ID -3.3A Applications z High Frequency Point-of-Load Synchronous Buck Converter for MB/NB/UMPC/VGA z Networking DC-DC Power System z Load Switch SOT23 Pin Configuration Absolute Maximum Ratings Symbol VDS VGS ID@TA=25℃ ID@TA=70℃ IDM PD@TA=25℃ PD@TA=70℃ TSTG TJ Thermal Data Symbol RθJA RθJA RθJC Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current, VGS @ -10V1 Continuous Drain Current, VGS @ -10V1 Pulsed Drain Current2 Total Power Dissipation3 Total Power Dissipation3 Storage Temperature Range Operating Junction Temperature Range Parameter Thermal Resistance Junction-Ambient 1 Thermal Resistance Junction-Ambient 1 (t ≤10s) Thermal Resistance Junction-Case1 Rating 10s Steady State -30 ±20 -3.8 -3.3 -3.1 -2.7 -17 1.32 1 0.84 0.64 -55 to 150 -55 to 150 Units V V A A A W W ℃ ℃ Typ. ------- Max. 125 95 80 Unit ℃/W ℃/W ℃/W Rev A.03 D101811 P-Ch 30V Fast Switching MOSFETs Electrical Characteristics (TJ=25 ℃, unless otherwise noted) Symbol Parameter BVDSS Drain-Source Breakdown Voltage △BVDSS/△TJ BVDSS Temperature Coefficient RDS(ON) Static Drain-Source...
