NAS1677 STRAP / RETAINING-CUSHIONED / RECTANGULAR

OF STATUE NOTES SEE NAS380. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M-1982. .213 TO .223 DIAMETER OPTION AVAILABLE WHEN SPECIFIED BY PART NUMBER. STANDARD SIZE LIMITATIONS: 3. 4. 5. 6. 7. 8. 9. THIS CATALOG PAGE IS FOR REFERENCE ONLY. REQUEST A CERTIFIED UMPCO DRAWING FOR ACTUAL SPECIFICATIONS.

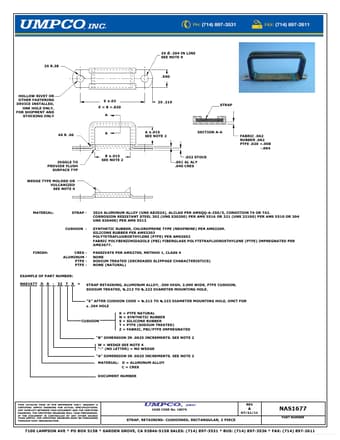

2X Ǿ .204 IN LINE SEE NOTE 9 2X R.38 .500 HOLLOW RIVET OR OTHER FASTENING DEVICE INSTALLED, ONE HOLE ONLY, FOR SHIPMENT AND STOCKING ONLY E ±.03 E = B +.820 A 2X .219 STRAP 4X R .06 A A ±.015 SEE NOTE 2 SECTION A-A FABRIC .062 RUBBER .062 PTFE .020 +.008 -.004 JOGGLE TO PROVIDE FLUSH SURFACE TYP WEDGE TYPE MOLDED OR VULCANIZED SEE NOTE 4 B ±.015 SEE NOTE 2 .032 STOCK .051 AL ALY .040 CRES MATERIAL: STRAP - 2024 ALUMINUM ALLOY (UNS A82024), ALCLAD PER AMSQQ-A-250/5, CONDITION T4 OR.
