78L05-150 - Linear Integrated Circuit

This page provides the datasheet information for the 78L05-150, a member of the 78L33-150 Linear Integrated Circuit family.

Datasheet Summary

Description

The 78Lxx series of fixed voltage monolithic integrated circuit voltage regulators are suitable for applications that required supply up to 150mA.

2.

Features

  • Maximum output current of 150mA Output voltage of 3.3V,5V,6V,8V,9V,10V 12V,15V and 24V Thermal overload protection Short circuit current limiting Output voltage accuracyğ1% 2.GND 1.Vout 3.Vin SOT-23 1.Vout 2.GND 3.INPUT SOT-89 4.Block Diagram R13 T10 R17 T8 R14 T11 T5 R9 Z2 T9 T13 T12 T14 R19 R18 R12 R11 R10 T6 R8 R15 Z1 R5 T4 T15 R4 R6 T7 R16 R1 R2 C1 R7 T3 T1 T2 R3 INPUT 3 OUTPUT 1 GND 2 UTD Semiconductor Co. ,Limited www. umw-ic. com Jan.2025 1 of 17 www. umw-.

📥 Download Datasheet

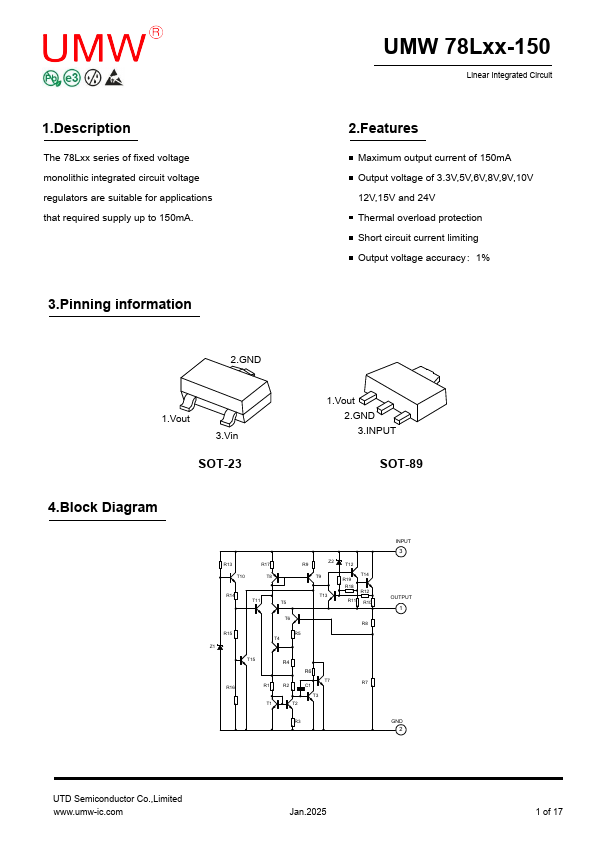

Datasheet preview – 78L05-150

Datasheet Details

Part number 78L05-150
Manufacturer UMW
File Size 2.12 MB
Description Linear Integrated Circuit
Datasheet download datasheet 78L05-150 Datasheet

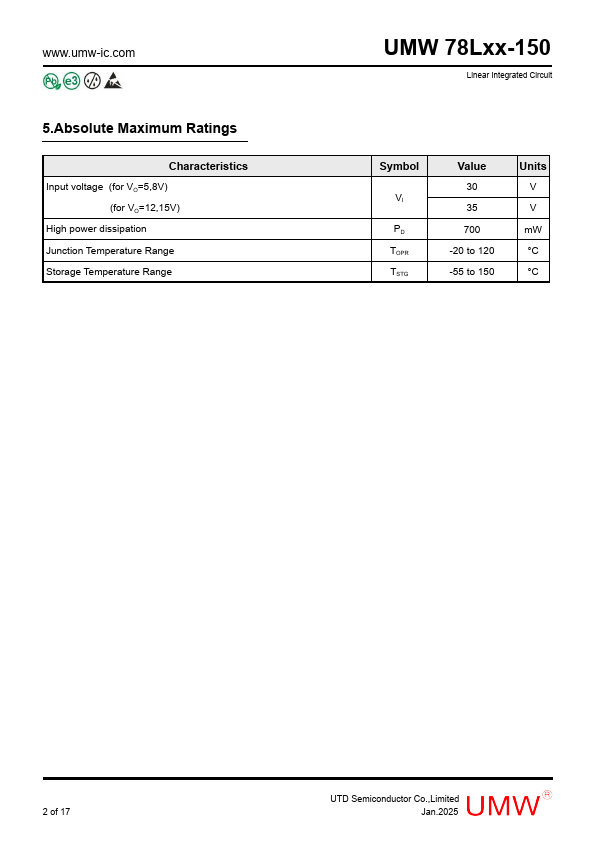

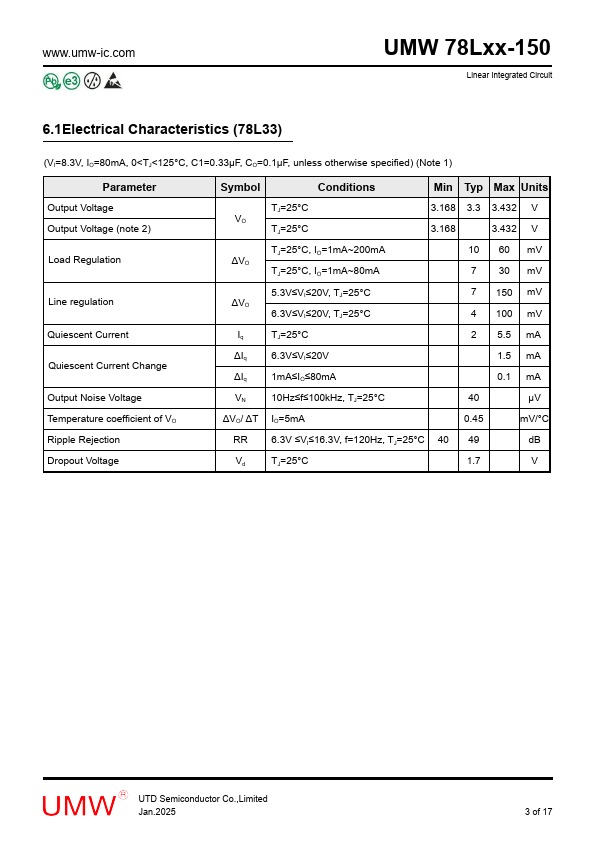

Additional preview pages of the 78L05-150 datasheet.

📁 Similar Datasheet

  • 78L05 - Positive voltage regulators (STMicroelectronics)
  • 78L05 - THREE TERMINAL POSITIVE VOLTAGE REGULATORS (KIA)
  • 78L05 - 3-Terminal positive voltage regulator (SEMTECH)
  • 78L05 - 100-mA Fixed Output Linear Regulator (Texas Instruments)
  • 78L05 - Positive-Voltage Regulators (Wing Shing)
  • 78L05 - 3-TERMINALS 0.1A POSITIVE VOLTAGE REGULATOR (Unisonic Technologies)
  • 78L05 - voltage regulators (GMC)
  • 78L05 - 3-Terminal 100mA Positive Voltage Regulator (Taiwan Semiconductor)
  • 78L05 - Three-terminal positive voltage regulator (LGE)
  • 78L05 - 3-Terminal Positive Regulators (National Semiconductor)
Other Datasheets by UMW

Full PDF Text Transcription

Click to expand full text
1.Description The 78Lxx series of fixed voltage monolithic integrated circuit voltage regulators are suitable for applications that required supply up to 150mA. 3.Pinning information UMW 78Lxx-150 Linear Integrated Circuit 2.Features Maximum output current of 150mA Output voltage of 3.3V,5V,6V,8V,9V,10V 12V,15V and 24V Thermal overload protection Short circuit current limiting Output voltage accuracyğ1% 2.GND 1.Vout 3.Vin SOT-23 1.Vout 2.GND 3.INPUT SOT-89 4.Block Diagram R13 T10 R17 T8 R14 T11 T5 R9 Z2 T9 T13 T12 T14 R19 R18 R12 R11 R10 T6 R8 R15 Z1 R5 T4 T15 R4 R6 T7 R16 R1 R2 C1 R7 T3 T1 T2 R3 INPUT 3 OUTPUT 1 GND 2 UTD Semiconductor Co.,Limited www.umw-ic.com Jan.2025 1 of 17 www.umw-ic.com 5.
