8205A - Dual N-Channel Enhancement Mode MOSFET

📥 Download Datasheet

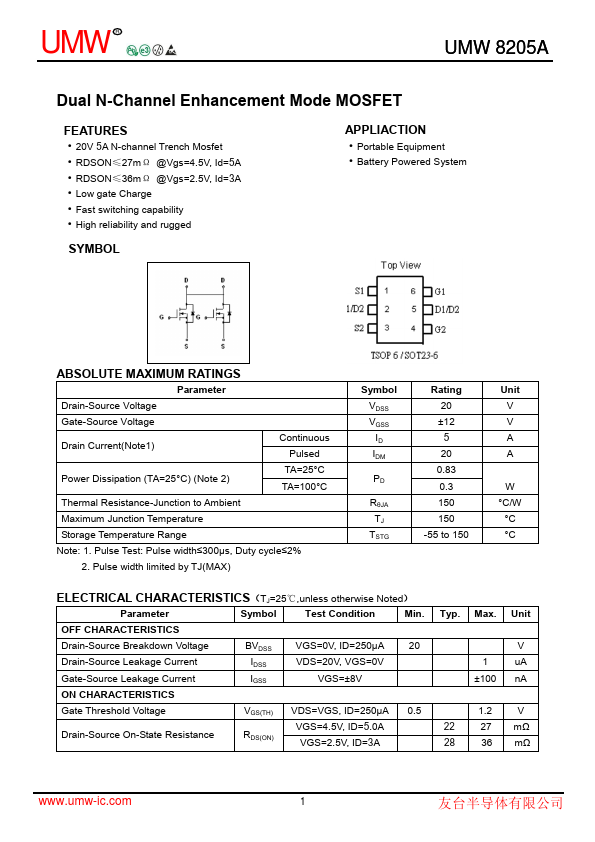

8205A Datasheet Preview — Preview of 8205A PDF

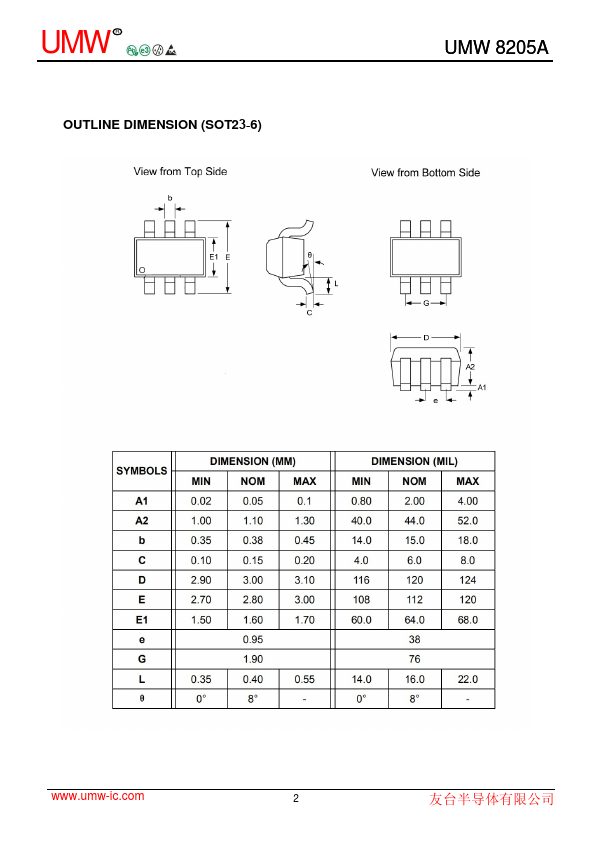

datasheet Preview Page 2

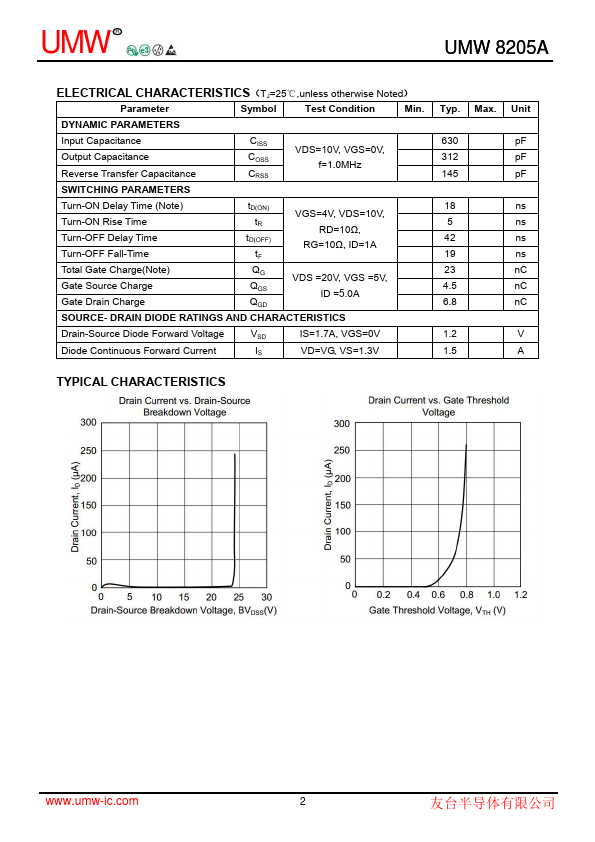

datasheet Preview Page 3

Datasheet Details

Part number	8205A
Manufacturer	UMW
File Size	653.14 KB
Description	Dual N-Channel Enhancement Mode MOSFET
Datasheet	8205A-UMW.pdf

8205A Product details

Features

20V 5A N-channel Trench Mosfet.
RDSON≤27mΩ @Vgs=4.5V, Id=5A.
RDSON≤36mΩ @Vgs=2.5V, Id=3A.
Low gate Charge.
Fast switching capability.
High reliability and rugged SYMBOL.
