AMS1117

1A LDO Voltage Regulator

AMS1117 Features

* include thermal shutdown and current limiting. It is suitable for all electronic products. FEATURES

* 1.5% output accuracy for fixed versions 1.2V,1.5V, 1.8V 2.5V, 3.3V, 5.0V and adjustable version

* Adjustable output voltage

* Low Dropout Voltage: Typical 1.2V@1A

* Current Limiting

AMS1117 General Description

The AMS1117 is a positive low voltage dropout regulator; typical voltage dropout is only 1.2V at 1A. AMS1117 provides two versions: fixed and adjustable versions. VOUT has a tolerance of less than 1.5% for fixed versions 1.2V 1.5V, 1.8V, 2.5V, 3.3V, 5.0V and adjustable version or 2% output accuracy .

AMS1117 Datasheet (385.89 KB)

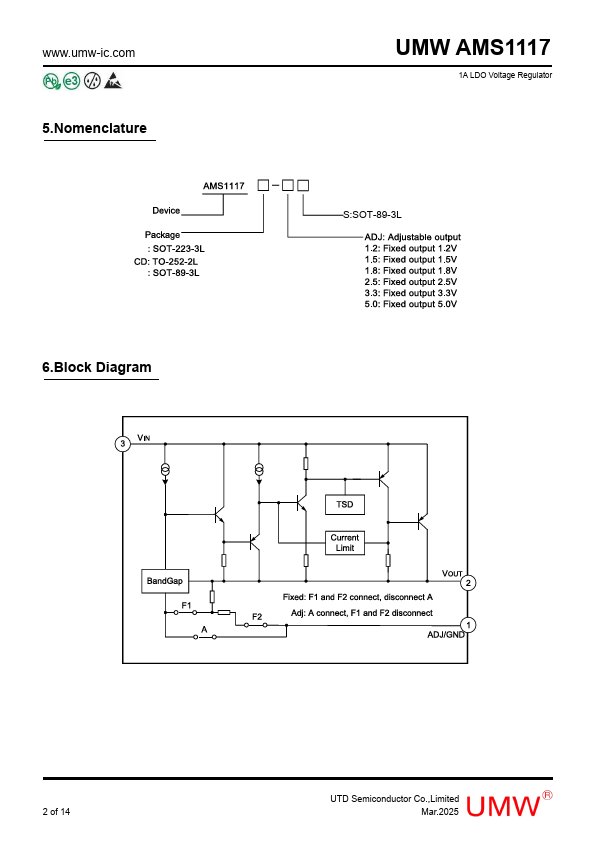

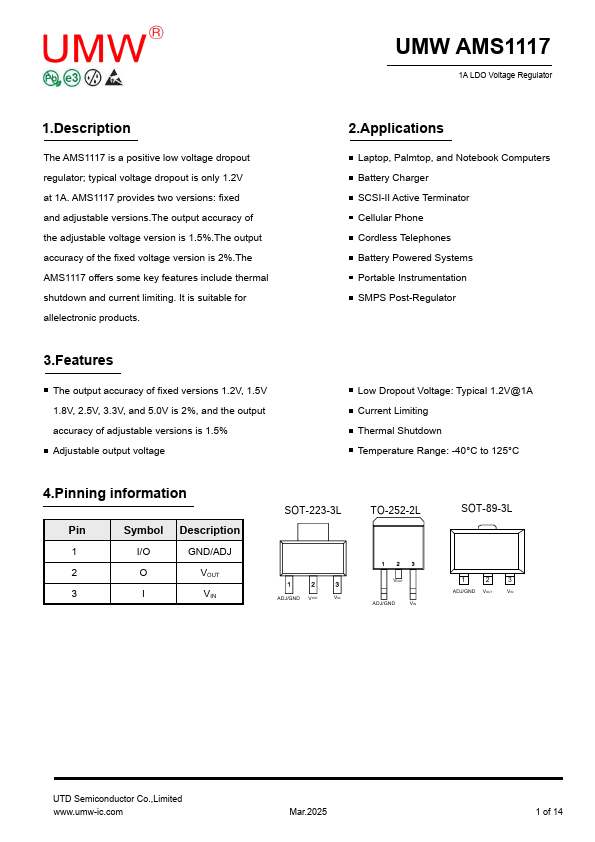

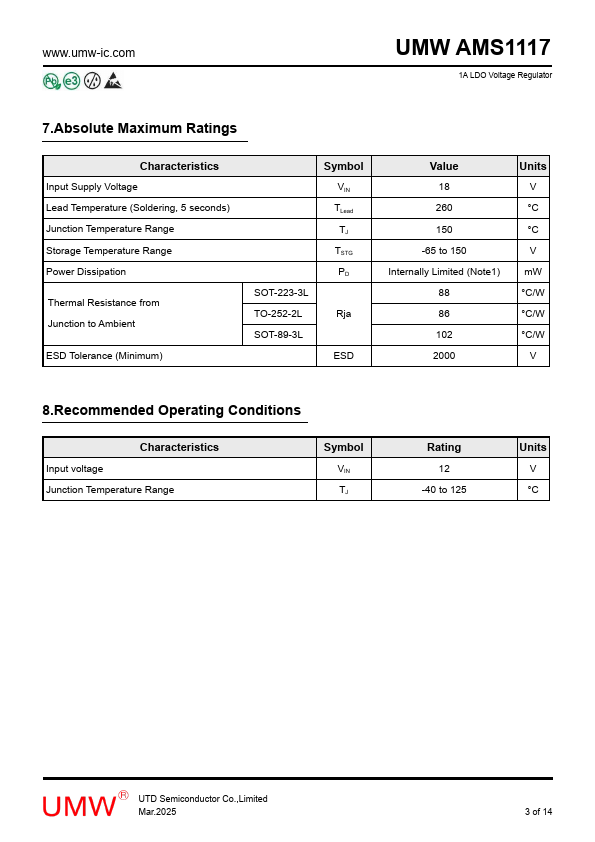

Preview of AMS1117 PDF

Datasheet Details

Part number:

AMS1117

Manufacturer:

UMW

File Size:

385.89 KB

Description:

1a ldo voltage regulator.
