Datasheet Details
| Part number | AOSP21321 |
|---|---|
| Manufacturer | UMW |
| File Size | 307.60 KB |
| Description | -30V P-ChanneI MOSFET |
| Datasheet |
 AOSP21321-UMW.pdf
|
| Part number | AOSP21321 |
|---|---|
| Manufacturer | UMW |
| File Size | 307.60 KB |
| Description | -30V P-ChanneI MOSFET |
| Datasheet |
AOSP21321-UMW.pdf
|

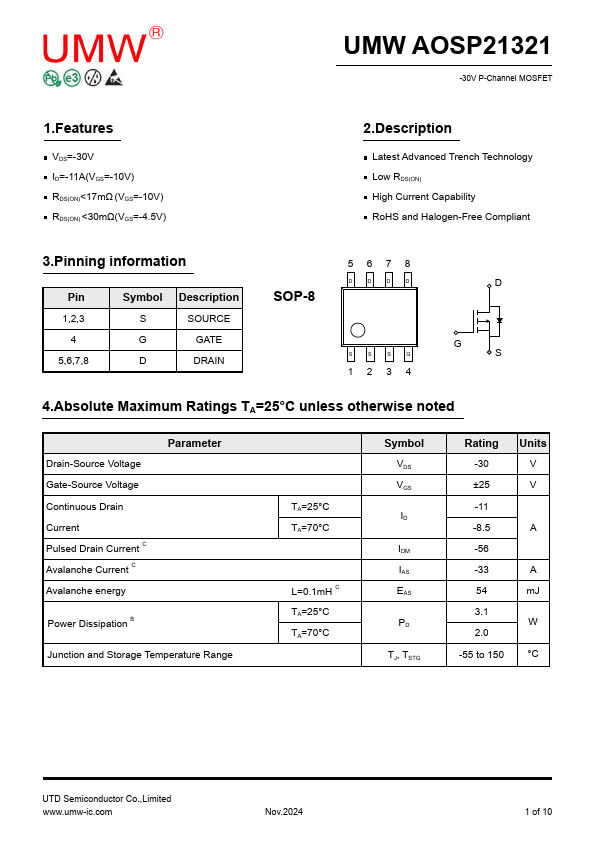

Latest Advanced Trench Technology Low RDS(ON) High Current Capability RoHS and Halogen-Free Compliant 3.Pinning information Pin 1,2,3 4 5,6,7,8 Symbol S G D Description SOURCE GATE DRAIN SOP-8 5678 D D D D S S S G 1234 D G S 4.Absolute Maximum Ratings TA=25°C unless otherwise noted Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current C Avalanche Current C Avalanche energy Parameter Power Dissipation B Junction and Storage Temperature Range
