AQ15-02HTG, AQ12-02HTG - TVS Diode

Name: AQ15-02HTG
SKU: AQ15-02HTG-1587687

📥 Download Datasheet

AQ15-02HTG Datasheet Preview — This datasheet PDF includes multiple part numbers: AQ15-02HTG, AQ12-02HTG. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	AQ15-02HTG, AQ12-02HTG
Manufacturer	UMW
File Size	209.46 KB
Description	TVS Diode
Datasheet	AQ12-02HTG-UMW.pdf
Note	This datasheet PDF includes multiple part numbers: AQ15-02HTG, AQ12-02HTG. Please refer to the document for exact specifications by model.

AQ15-02HTG Product details

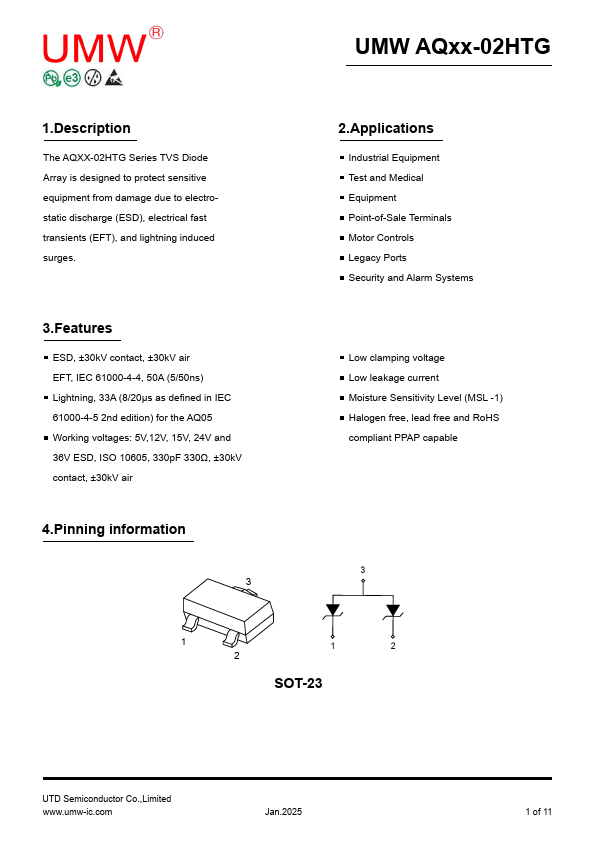

Description

The AQXX-02HTG Series TVS Diode Array is designed to protect sensitive equipment from damage due to electrostatic discharge (ESD), electrical fast transients (EFT), and lightning induced surges.

Features

ESD, ±30kV contact, ±30kV air EFT, IEC 61000-4-4, 50A (5/50ns) Lightning, 33A (8/20μs as defined in IEC 61000-4-5 2nd edition) for the AQ05 Working voltages: 5V,12V, 15V, 24V and 36V ESD, ISO 10605, 330pF 330Ω, ±30kV contact, ±30kV air 4.Pinning information 3 2.
