AZC199-04S - Low Capacitance Protection Array

Name: AZC199-04S
SKU: AZC199-04S-1587741

📥 Download Datasheet

AZC199-04S Datasheet Preview — Preview of AZC199-04S PDF

Datasheet Details

Part number	AZC199-04S
Manufacturer	UMW
File Size	349.14 KB
Description	Low Capacitance Protection Array
Datasheet	AZC199-04S-UMW.pdf

AZC199-04S Product details

Description

This device has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events),and lightning.

Features

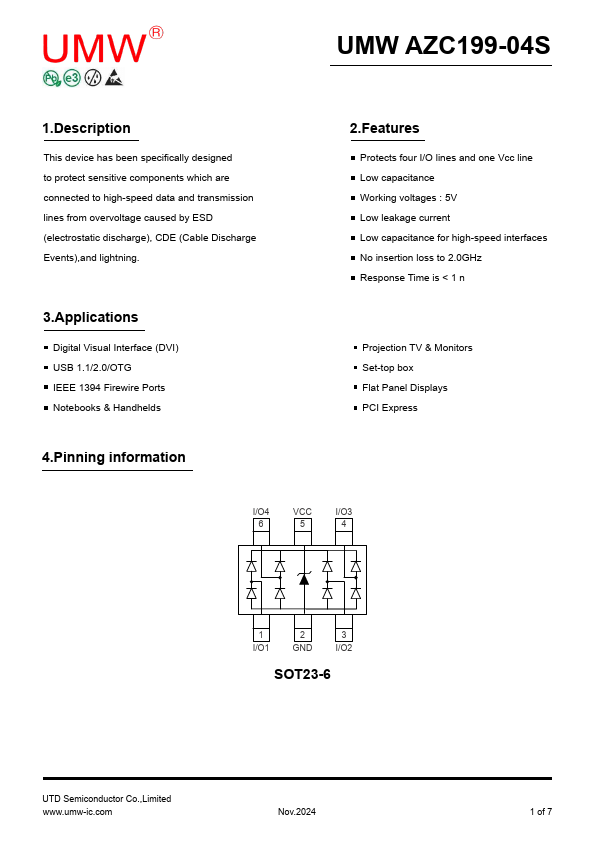

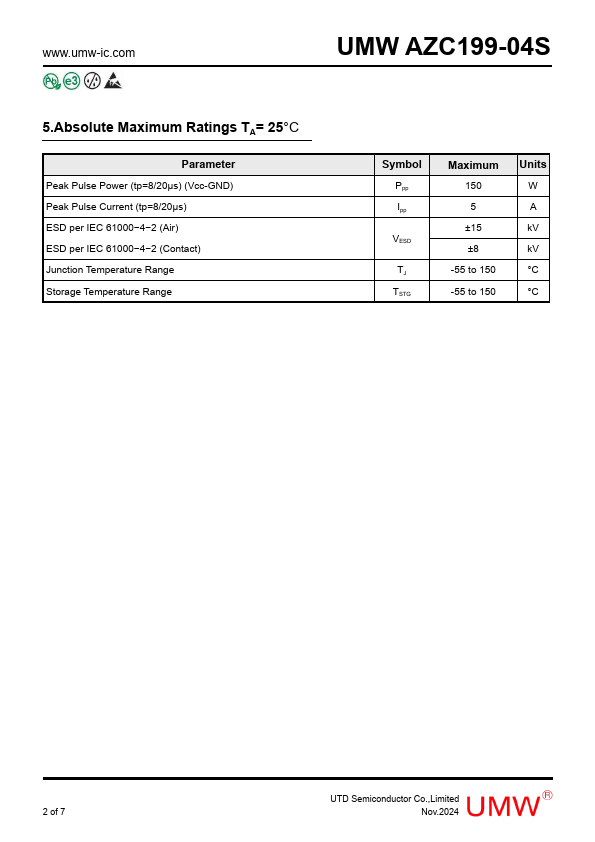

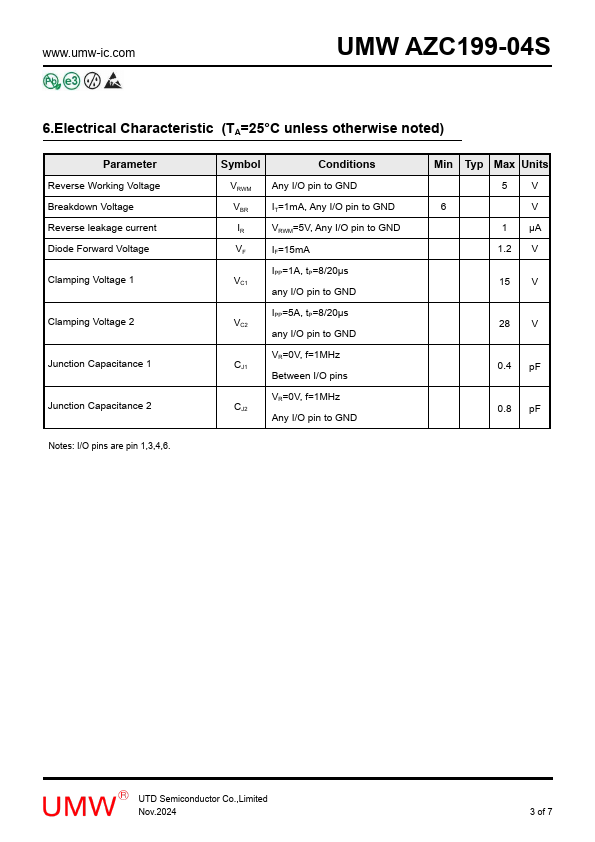

Protects four I/O lines and one Vcc line Low capacitance Working voltages : 5V Low leakage current Low capacitance for high-speed interfaces No insertion loss to 2.0GHz Response Time is < 1 n Projection TV & Monitors Set-top box Flat Panel Displays PCI Express I/O4 VCC I/O3 6 5 4 1 2 3 I/O1 GND I/O2 SOT23-6 UTD Semiconductor Co. ,Limited www. umw-ic. com Nov.2024 1 of 7 www. umw-ic. com UMW AZC199-04S 5.Absolute Maximum Ratings TA= 25°C Parameter Peak Pulse Power (tp=8/20µs) (Vcc-G.
