BTA24 - silicon bidirectional devices

Product Overview

Datasheet Details

Part number	BTA24
Manufacturer	UMW
File Size	1.45 MB
Description	silicon bidirectional devices
Datasheet	BTA24 Datasheet
Additional preview pages of the BTA24 datasheet.

Product details

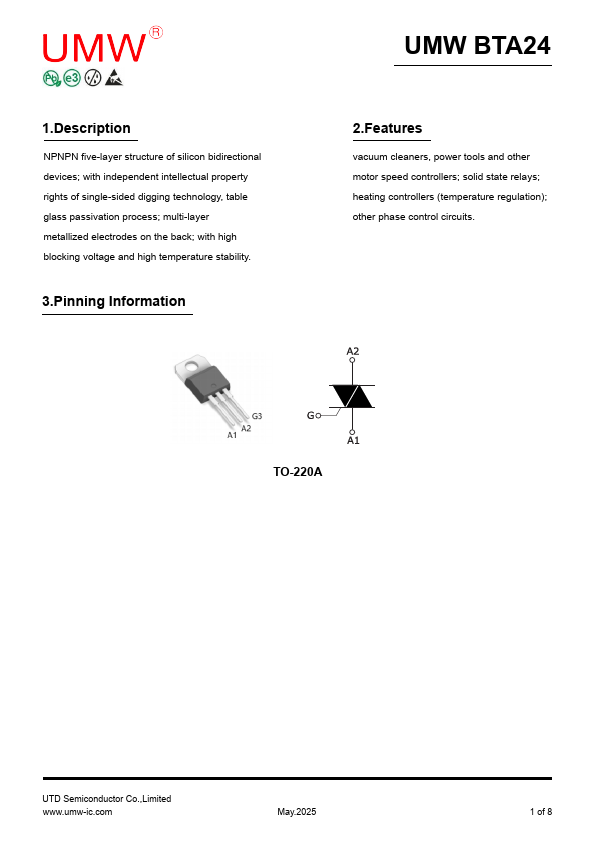

Description

NPNPN five-layer structure of silicon bidirectional devices; with independent intellectual property rights of single-sided digging technology, table glass passivation process; multi-layer metallized electrodes on the back; with high blocking voltage and high temperature stability.

Features

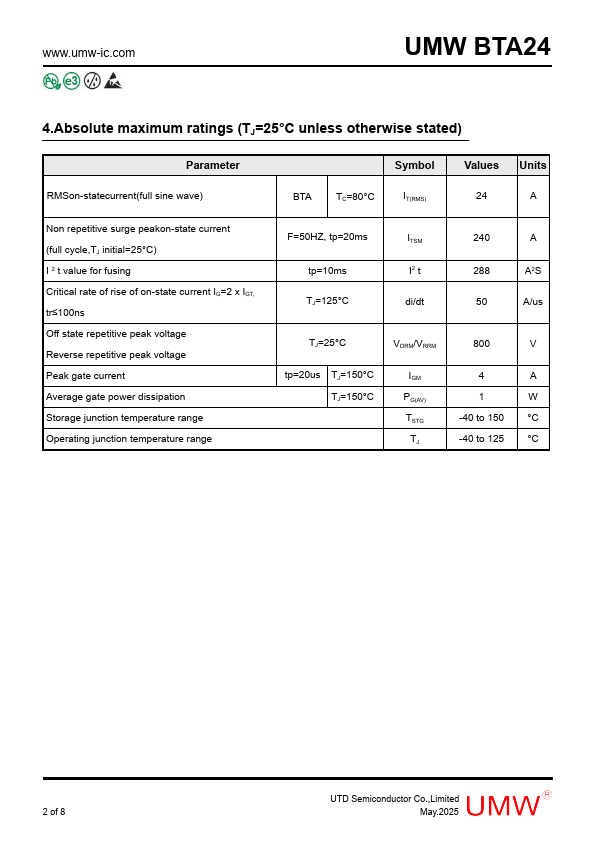

vacuum cleaners, power tools and other motor speed controllers; solid state relays; heating controllers (temperature regulation); other phase control circuits. TO-220A UTD Semiconductor Co. ,Limited www. umw-ic. com May.2025 1 of 8 www. umw-ic. com UMW BTA24 4.Absolute maximum ratings (TJ=25°C unless otherwise stated) Parameter Symbol Values Units RMSon-statecurrent(full sine wave) Non repetitive surge peakon-state current (full cycle,TJ initial=25°C) I 2 t value for fusing Critical rate o.
