BTA24-600CW, BTA24 Datasheet - UMW

datasheet Preview Page 1 from Datasheet4u.com

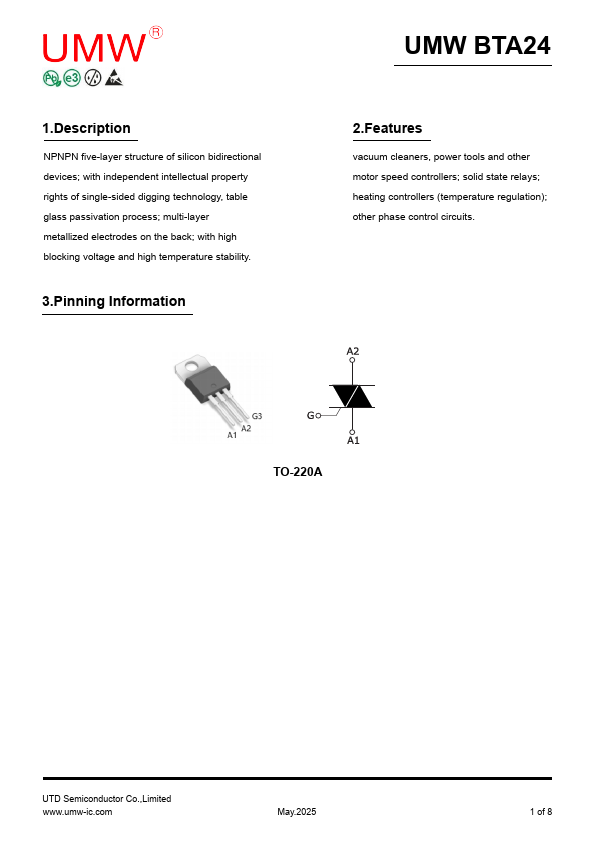

BTA24-600CW, BTA24 silicon bidirectional devices

1..
NPNPN five-layer structure of silicon bidirectional devices; with independent intellectual property rights of single-sided digging technology, table g.

BTA24-UMW.pdf

BTA24-600CW Datasheet Preview — This datasheet PDF includes multiple part numbers: BTA24-600CW, BTA24. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BTA24-600CW, BTA24

Manufacturer:

UMW

File Size:

1.45 MB

Description:

silicon bidirectional devices

Note:

This datasheet PDF includes multiple part numbers: BTA24-600CW, BTA24.
Please refer to the document for exact specifications by model.

Features

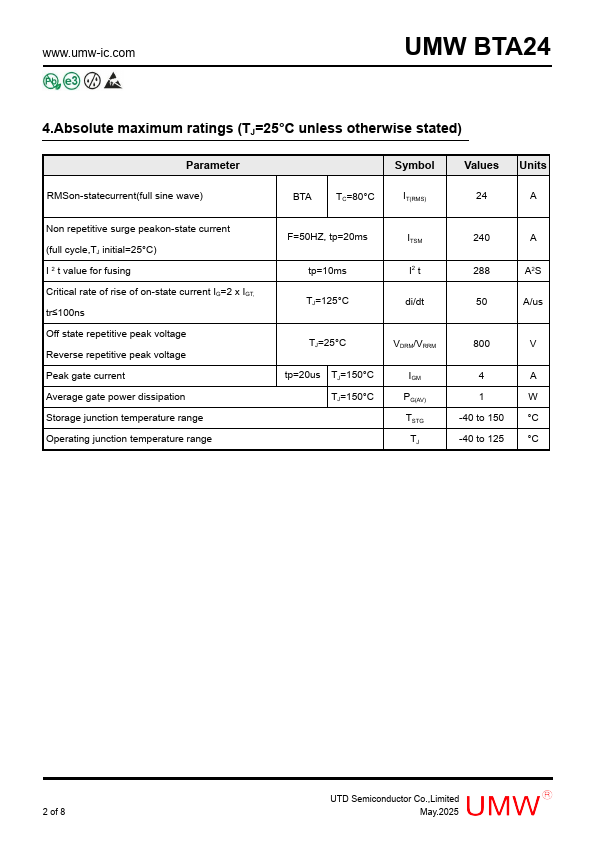

* vacuum cleaners, power tools and other motor speed controllers; solid state relays; heating controllers (temperature regulation); other phase control circuits. TO-220A UTD Semiconductor Co. ,Limited www. umw-ic. com May.2025 1 of 8 www. umw-ic. com UMW BTA24 4.Absolute maximum ratings (TJ=25°C unl
