BTA24-800BW - silicon bidirectional devices

Product Overview

Datasheet Details

Part number	BTA24-800BW
Manufacturer	UMW
File Size	1.45 MB
Description	silicon bidirectional devices
Datasheet	BTA24-800BW Datasheet
Note	This datasheet PDF includes multiple part numbers: BTA24-800BW, BTA24. Please refer to the document for exact specifications by model.
Additional preview pages of the BTA24-800BW datasheet.

Product details

Description

NPNPN five-layer structure of silicon bidirectional devices; with independent intellectual property rights of single-sided digging technology, table glass passivation process; multi-layer metallized electrodes on the back; with high blocking voltage and high temperature stability.

Features

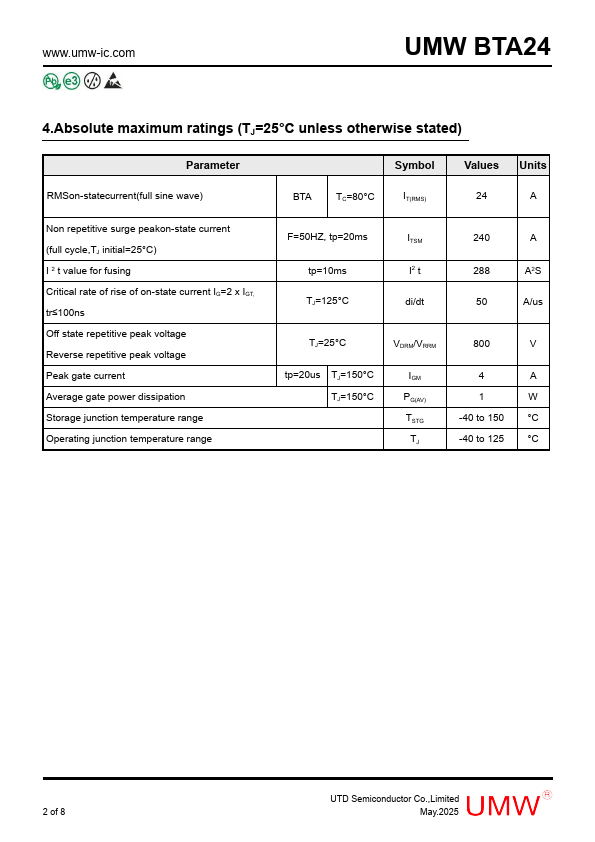

vacuum cleaners, power tools and other motor speed controllers; solid state relays; heating controllers (temperature regulation); other phase control circuits. TO-220A UTD Semiconductor Co. ,Limited www. umw-ic. com May.2025 1 of 8 www. umw-ic. com UMW BTA24 4.Absolute maximum ratings (TJ=25°C unless otherwise stated) Parameter Symbol Values Units RMSon-statecurrent(full sine wave) Non repetitive surge peakon-state current (full cycle,TJ initial=25°C) I 2 t value for fusing Critical rate o.
