EL357 - DC Input Photo Transistor Coupler

EL357 Description

UMW R .
The UMW EL357 series combine an AlGaAs infrared emitting diode as the emitter which is optically coupled to a silicon planar phototransistor detector.

EL357 Features

* High isolation 3750 VRMS
* CTR flexibility available see order information
* DC input with transistor output
* Operating temperature range - 55 °C to 110 °C
* REACH compliance
* Halogen free
* MSL class 1

EL357 Applications

* Switch mode power supplies
* Programmable controllers
* Household appliances
* Office equipment EL357 SOP4, DC Input Photo Transistor Coupler Structural schematic diagram 1 4 2 3 1. Anode 2. Cathode 3. Emitter 4. Collector www. umw-ic. com 1 UMW R EL357 SOP4, DC Input Pho

📥 Download Datasheet

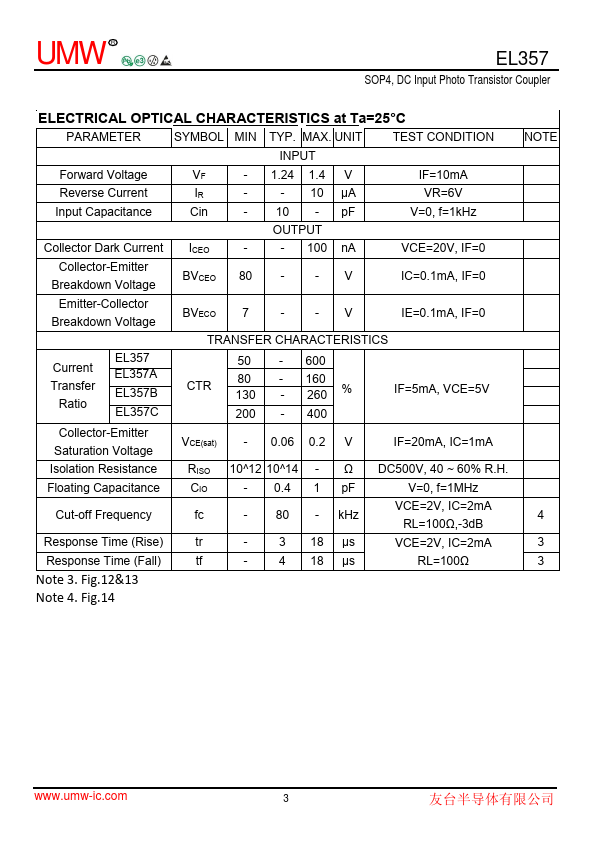

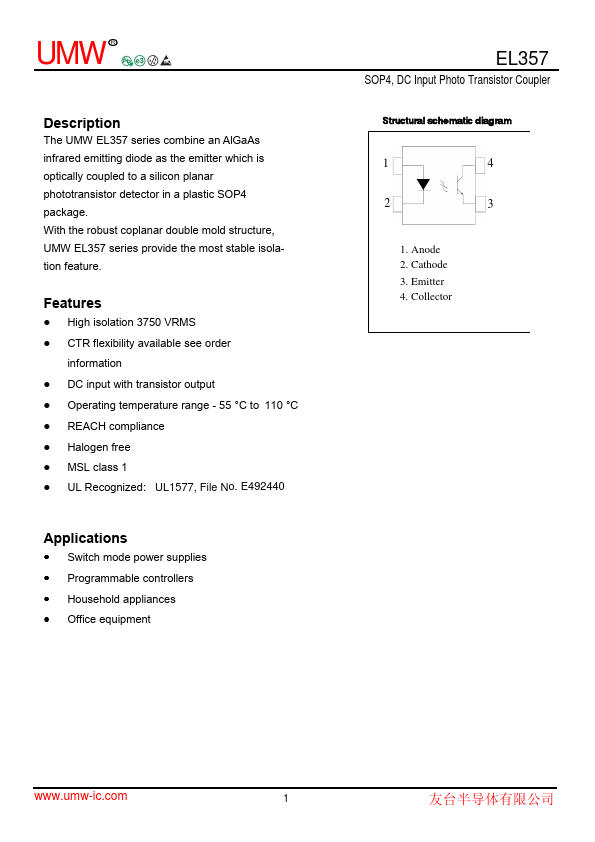

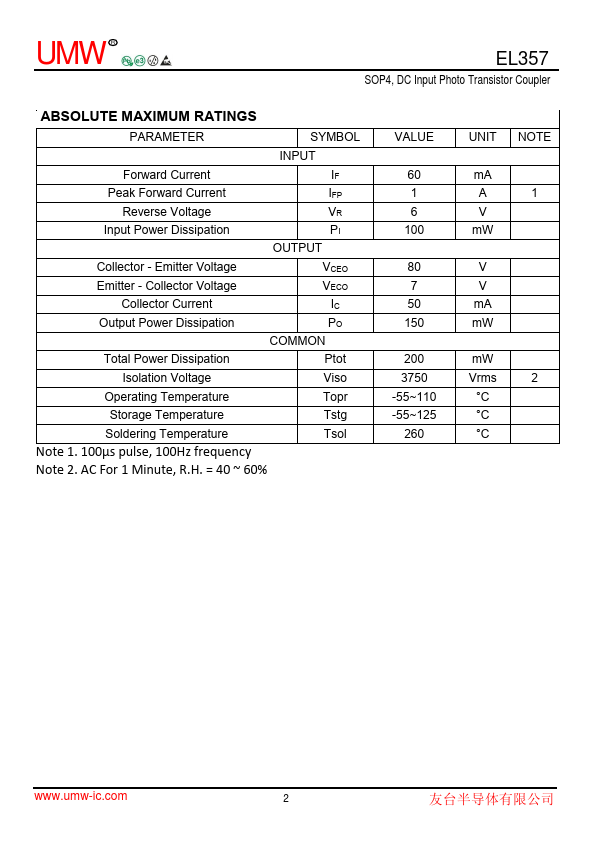

Preview of EL357 PDF
